บริษัท แอล.เอ็กซ์.อีเล็คโทรนิคส์ จำกัด

ได้รับแต่งตั้งเป็น ตัวแทนนำเข้าและจัดจำหน่ายผลิตภัณฑ์ ยี่ห้อ Shihlin Electric อย่างเป็นทางการในประเทศไทย  Shihlin Electric (Thailand) ตั้งแต่ปี พ.ศ 2559 จนถึงปัจจุบัน กลุ่มผลิตภัณฑ์ที่นำเข้าและจัดจำหน่ายอย่างเป็นทางการ ได้แก่ Breaker & Switchgear System Heavy power & Industrial System, Low voltage, Medium voltage และ Breaker & Control

     SHIHLIN ELECTRIC & ENGINEERING CORPORATION

ก่อตั้งขึ้นเมื่อ ปี พ.ศ. 2498 และได้ขยายการดำเนินงานจากการก่อสร้างพื้นฐาน ไป สู่งาน คมนาคม สาธารณะ จากการพัฒนาแหล่งพลังงานไฟฟ้าเพื่อช่วยในการยกระดับอุตสาหกรรม Shihlin เป็นผลิตภัณฑ์ที่ได้รับการยอมรับเรื่องคุณภาพเป็นอันดับ 1 ในประเทศไต้หวัน ซึ่งได้รับมาตรฐานโรงงาน  ISO และ มาตรฐาน มอก. ของประเทศไทย พร้อมรองรับฐานลูกค้าโรงงานอุตสาหกรรม อย่างครอบคุลมทั่วประเทศ

เราเป็นผู้นำตลาดในประเทศไต้หวัน ที่มีเทคโนโลยีขั้นสูงในด้านระบบพลังงานไฟฟ้าแรงสูง อุปกรณ์ไฟฟ้า เครื่องจักร และระบบอัตโนมัติมาเป็นเวลานาน อีกทั้งยังมีผลงานและกลยุทธที่ยอดเยี่ยม ในตลาดต่างประเทศ
ด้วยการเติบโตอย่างต่อเนื่องของรายได้ ทั้งในประเทศและต่างประเทศ เราจึงตัดสินใจร่วมทุนกับบริษัทต่างประเทศที่มีชื่อเสียงในด้านการผลิต ODM และ OEM ซึ่งการร่วมทุนครั้งนี้ ได้เสริมสร้างศักยภาพของบริษัทในด้านการวิจัยและพัฒนาตลอดจนการผลิตให้ได้มาตรฐานสากลทั้งในด้านผลิตภัณฑ์และความรู้ทางเทคโนโลยี

ด้านตลาดในประเทศไทย Shihlin ได้รับความเชื่อมั่นไว้วางใจ ยอมรับและใช้ในงานอุตสาหกรรมเครื่องจักรและงานระบบไฟฟ้า เนื่องด้วยผลิตภัณฑ์ได้รับมาตรฐานอุตสาหกรรมทางด้านคุณภาพในระดับสูง โดยกลุ่มลูกค้าในประเทศไทยที่ใช้ ผลิตภัณฑ์ Shihlin มีหลากหลาย ทั้งโครงการภาครัฐวิสาหกิจ การไฟฟ้าส่วนภูมิภาค การไฟฟ้าฝ่ายผลิต ตลอดจนบริษัทเอกชน และผู้รับเหมาออกแบบระบบไฟฟ้าในอาคาร ที่อยู่อาศัยและโรงงาน อีกทั้งยังมีทีมงานคอยสนับสนุน ให้คำปรึกษา และผลิตภัณฑ์ที่พร้อมจัดส่งให้แก่ลูกค้าทั่วประเทศ

Shihlin

NEMA Type

BP Series

BP

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 10.15.20.30.40.50.60.75.100A
    • Pole: 1P 2P 3P
    • Breaking capacity:
      • Icu:
        • 1P 110V/ 5kA (sym)
        • 2P 220V/ 5kA (sym)
        • 3P 220V/ 5kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

BPH

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 15.20.30.40.50.60.75.100A
    • Pole: 1P 2P 3P
    • Breaking capacity:
      • Icu:
        • 1P 110V/ 10kA (sym)
        • 2P 220V/ 10kA (sym)
        • 3P 220V/ 10kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

BKH

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 15.20.30.40.50.60.75.100A
    • Pole: 1P 2P 3P
    • Breaking capacity:
      • Icu:
        • 1P 110V/ 15kA (sym) 220V/10 kA (sym)
        • 2P 220V/ 15kA (sym) 380V/10kA (sym)
        • 3P 220V/ 15kA (sym) 380V/10kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

BL

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 15.20.30.40.50.60.75.100A
    • Pole: 1P 2P 3P
    • Breaking capacity:

Icu:

      • 1P 110V/ 5kA (sym)
      • 2P 220V/ 5kA (sym)
      • 3P 220V/ 5kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

BLH

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 15.20.30.40.50A
    • Pole: 1P 2P 3P
    • Breaking capacity:

Icu:

      • 1P 110V/ 10kA (sym)
      • 2P 220V/ 10kA (sym)
      • 3P 220V/ 10kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

BLS

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 60.75.100A
    • Pole: 2P 3P
    • Breaking capacity:

Icu:

      • 2P 220V/ 10kA (sym)
      • 3P 220V/ 10kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

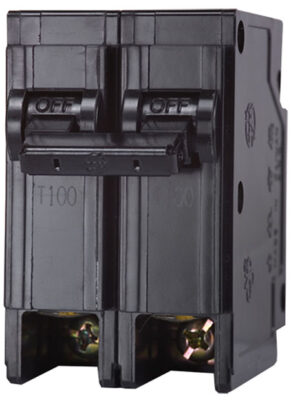

BKL

Specification

    • Standard: IEC60947-2
    • Voltage Ue: 110~380V
    • Rated current In: 15.20.30.40.50.60.75.100A
    • Pole: 1P 2P 3P
    • Breaking capacity:

Icu:

      • 1P 110V/ 15kA (sym) 220V/ 10kA (sym)
      • 2P 220V/ 15kA (sym) 380V/ 10kA (sym)
      • 3P 220V/ 15kA (sym) 380V/ 10kA (sym)
    • Trip Unit: Thermal magnetic

Applications Home Circuit Panel Use

BL Series - Earth Leakage Protection

BL-50L

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50A
    • Pole: 1P2E, 2P2E
    • Rated current sensitivity: 30.100.200.300.500mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 1P 110V/ 5kA (sym)
      • 2P 220V/ 5kA (sym)

Applications

  • Humid Work Place

BL-50UL

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50A
    • Pole: 1P2E, 2P2E
    • Rated current sensitivity: 30.100.200.300.500mA
    • Operating time: 0.1s(high speed)
    • Breaking capacity:Icu:
      • 1P 110V/ 10kA (sym) 220V/5 kA (sym)
      • 2P 220V/ 10kA (sym)

Applications

  • Humid Work Place

BLP-50L

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50A
    • Pole: 1P2E, 2P2E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 1P 110V/ 5kA (sym)
      • 2P 220V/ 5kA (sym)

Applications

  • Humid Work Place

BLP-50UL

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50A
    • Pole: 1P2E, 2P2E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 1P 110V/ 10kA (sym) 220V/5 kA (sym)
      • 2P 220V/ 10kA (sym)

Applications

  • Humid Work Place

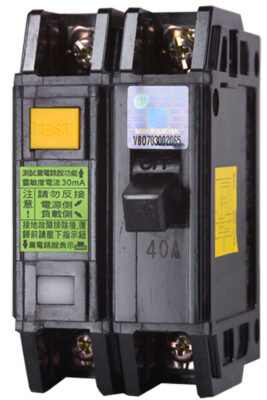

BL-50F

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50A
    • Pole: 2P1E, 2P2E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 2P1E 110V/ 5kA (sym)
      • 2P2E 220V/ 5kA (sym)

Applications

  • Humid Work Place

BL-50U

Specification

    • Standard: CNS 5422
    • Voltage: 110V
    • Current: 15.20.30.40.50A
    • Pole: 2P1E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 110V/ 10kA (sym)

Applications

  • Humid Work Place

BL-100U

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50.60.75.100A
    • Pole: 2P2E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s(high speed)
    • Breaking capacity:Icu:
      • 220V/ 10kA (sym)

Applications

  • Humid Work Place

BL-50H

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30.40.50A
    • Pole: 2P1E, 2P2E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 2P1E 110V/ 15kA (sym) , 220V/ 10kA (sym)
      • 2P2E 220V/ 5kA (sym)

Applications

  • Humid Work Place

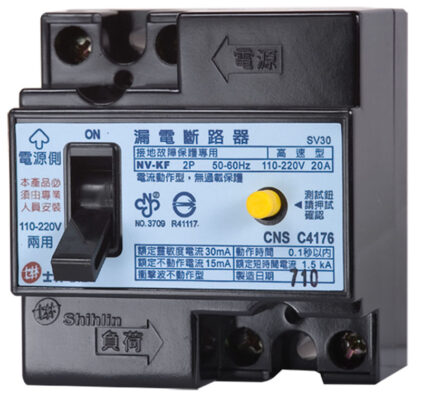

BL-KLF

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 15.20.30 A
    • Pole: 2P1E, 2P2E
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 2P1E 110~220V/ 1.5kA (sym)
      • 2P2E 110~220V/ 1.5KA (sym)

Applications

  • Humid Work Place

BL-K30F

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V. 380~440V
    • Current: 15.20.30 A
    • Pole: 3P
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 3P 110~220V/ 1.5kA (sym)
      • 3P 380~440V/ 1.5KA (sym)

Applications

  • Humid Work Place

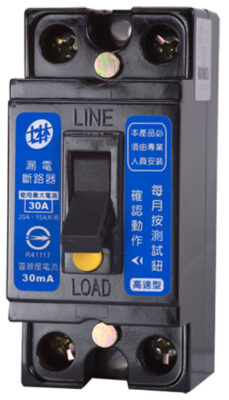

BL-BF

Specification

    • Standard: CNS 5422
    • Voltage: 110~220V
    • Current: 30A(15A.20A)40A(15A.20A.30A)
    • Pole: 2P
    • Rated current sensitivity: 30mA
    • Operating time: 0.1s
    • Breaking capacity:Icu:
      • 110~220V/ 1.5kA
      • 110~220V/ 2.5kA (40A)

Applications

  • Humid Work Place
Din-Rail Type (BHA Series)

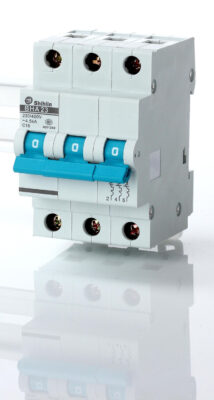

BHA (MCB)

Specification

    • Standard: IEC60947-2, IEC60898, GB10963
    • Rated insulation voltage Ui: AC 690V
    • Rated voltage: AC 230/400V, DC125V
    • Rated current In:1.2.3.4.5.6.10.16.20.25.32.40.50.63A
    • Pole: AC – 1P 2P 3P 4P  , DC – 1P 2P
    • Breaking capacity: AC – 4.5/6/10kA , DC – 10kA
    • C/D TYPE
    • AL.AX.SHT.UVT.OVT

Applications

    • Home & Factoy Use
    • Circuit Protection

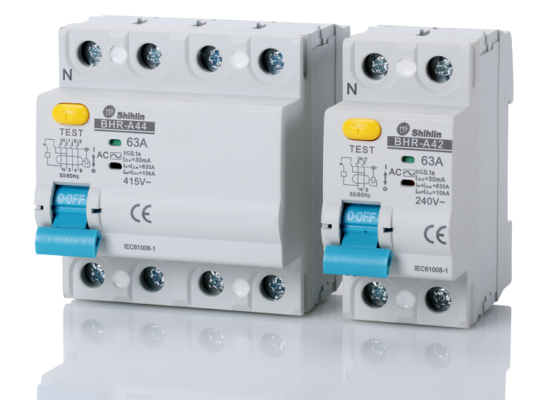

BHR-A (RCCB)

  • Test button(yellow) provides earth-leakage testing function during the regular maintenance.
  • Tool-free installation with the application of standard DIN-rail TH35mm, makes installation easy and convenient.
  • AC class: Tripping is ensured for sinusoidal, alternating currents, whether they be quickly applied or slowly increase.
  • A class: Tripping is ensured for sinusoidal, alternating residual currents as well as for pulsed DC residual currents, whether they be quickly applied or slowly increase.

Standard: IEC61008-1Rated Current (In): 25, 32, 40, 63APole: 2P, 4PRated Voltage (V): 240Vac(2P), 415Vac(4P)Rated Sensitivity Current: 10/30/100/300 mARated limited short circuit current: 10kAResidual Current Type: A, ACEarth leakage protection

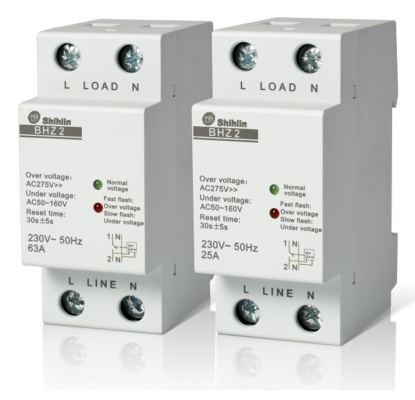

BHZ

With over and under voltage protection, the device will trip when the voltage supply is over or under value. If the voltage supply return to normal, the device will automatically reset without any manual intervention.High voltage detection accuracy and precision operating time using microcontroller, reliable protection .Using magnetic latching relay as internal part, energy conservation and environmental protection with low power consumption under normal operation.Rated Current (In): 25A, 32A, 40A, 50A, 63ARated Voltage (V): AC230V, 50HzPoles: 1P+NRated insulation voltage: 690VacRated impulse withstand voltage: 40,000V Voltage protection range: AC 0~450VOver/Under Voltage Protection

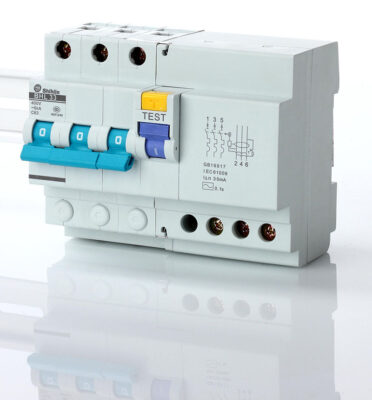

BHL

Specification

    • Standard: IEC61009
    • Rated insulation voltage Ui: AC 690V
    • Rated voltage: AC 230/400V
    • Rated current In:1.2.3.4.5.6.10.16.20.25.32.40.50.63A
    • Pole: 1P 1P+N 2P 3P 4P
    • Breaking capacity: 4.5/6/10kA
    • C/D TYPE
    • AL.AX.SHT.UVT.OVT

Applications

    • Home & Factoy Use
    • Circuit Protection

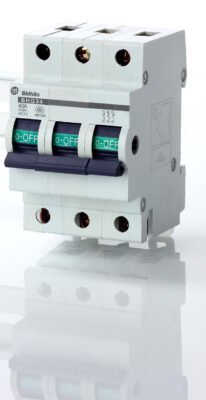

BHG

Specification

    • Standard: IEC60947-3
    • Rated voltage: AC 230/400VRated current In: 32.40.63.80.100A
    • Pole: 1P 2P 3P 4P

Applications

    • Home & Factoy Use
    • Circuit Protection

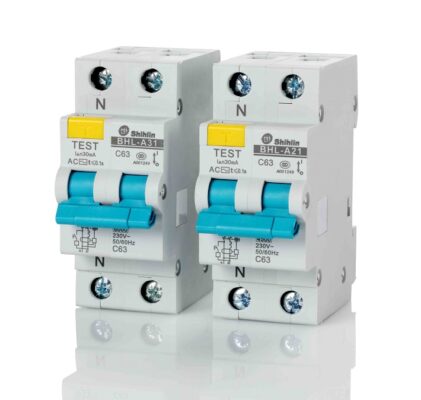

BHL-A (RCBO)

  • Excellent anti-electromagnetic interference capability which avoid the fault trip caused by a transient over-voltage.
  • Tool-free installation with the application of standard DIN-rail TH35mm, makes installation easy and convenient.
  • Reliable usage with N phase breakpoint.
  • Electronic type A/AC type leakage protection.
  • AC class: Tripping is ensured for sinusoidal, alternating currents, whether they be quickly applied or slowly increase.
  • A class: Tripping is ensured for sinusoidal, alternating residual currents as well as for pulsed DC residual currents, whether they be quickly applied or slowly increase.

Rated Current (In): 6, 10, 16, 20, 25, 32, 40, 50, 63ARated Voltage (V): AC230V, 50/60HzPole: 1P+NRated limited short circuit current: 4.5 / 6 kARated Sensitivity Current: 30/100/300 mAResidual Current Type: A, ACOverload protectionShort circuit protectionEarthleakage protection

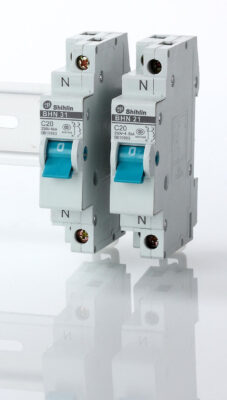

BHN

Specification

    • Standard: IEC60947-2, IEC60898, GB10963
    • Rated insulation voltage Ui: AC 690V
    • Rated voltage: AC 230V
    • Rated current In:1.2.3.4.5.6.10.16.20.25.32.40.50.63A
    • Pole: AC – 1+N
    • Breaking capacity: AC – 4.5/6kA
    • C TYPE

Applications

    • Home & Factoy Use
    • Circuit Protection

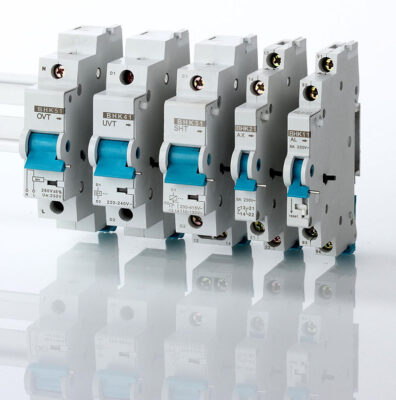

Accessories

Specification

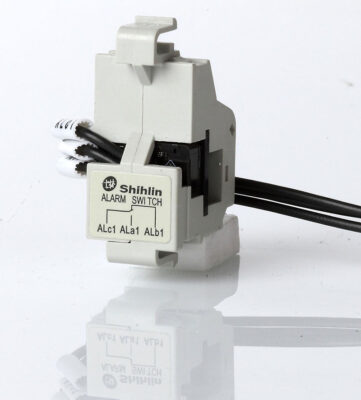

BHK1: Alarm Switch (AL) – 1NO 1NC // 230V 6A, 440V 3ABHK2: Auxiliary Contact (AX) – 1NO 1NC // 230V 6A, 440V 3ABHK3: Shunt Trip (SHT) – 1NO 1NC // 230V 6A, 440V 3A // AC12V/24~48V/230~415V, DC12V/12~48V/110~130VBHK4: Under Voltage Trip (UVT) – 1NO 1NC // 230V 6A, 440V 3A // AC220~240V, DC48VBHK5: Over Voltage Trip (OVT) – Rated voltage 230V // 15mA // over voltage range 280V +-5% // trip time 0.25ms

Applications

    • Home & Factoy Use
    • Circuit Protection
Din-Rail Type (RP Series)

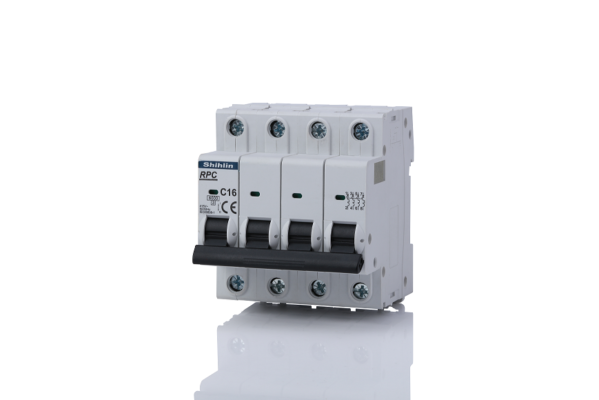

RPC (MCB)

Features

    • Overload and instantaneous protection
    • Comply with IEC 60898-1 and IEC 60947-2
    • Window display for ON/OFF status
    • Din-rail TH35mm tool free installation

Specification

    • Standard: IEC60947-2, IEC60898
    • Rated Current: 6, 10, 16, 20, 25, 32, 40, 50, 63A
    • Pole: 1P, 2P, 3P, 4P

Breaking Capacity

AC: 6 / 10kA

Protection

    • Overload protection
    • Short circuit protection

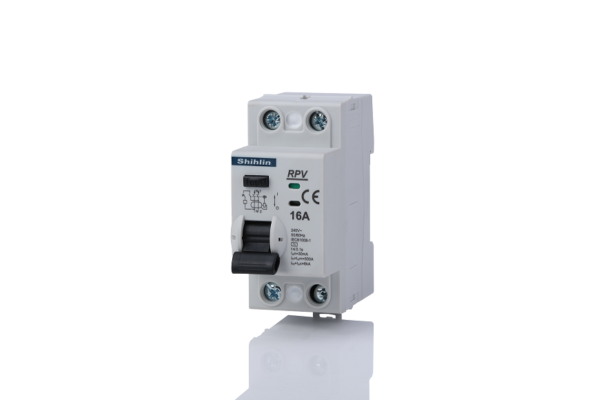

RPV (RCCB)

Features

    • Leakage protection
    • Comply with IEC 61008-1
    • Window display for ON/OFF status and leakage indicator
    • Leakage test bottom
    • Din-rail TH35mm tool free installation

Specification

    • Standard: IEC61008-1
    • Rated Current: 16, 20, 25, 32, 40, 63A
    • Rated Sensitivity Current: 10, 15, 30, 100, 300mA
    • Pole: 2P, 4P
    • Residual Current Type: A, AC

Breaking Capacity

IC: 6 / 10kA

Protection

Earth leakage protection

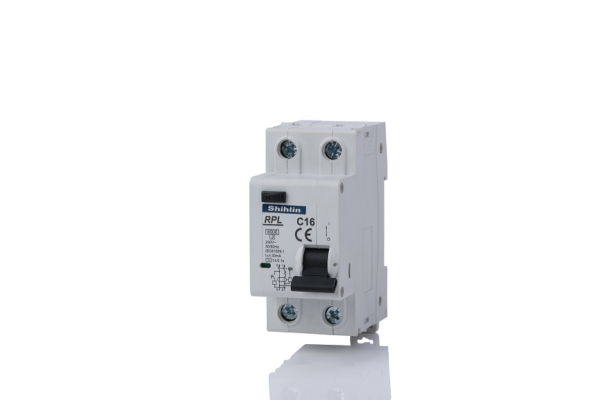

RPL (RCBO)

Features

    • Overload, instantaneous and leakage protection
    • Comply with IEC 61009-1
    • Window display for leakage indicator
    • Leakage test bottom
    • Din-rail TH35mm tool free installation

Specification

    • Standard: IEC61009
    • Rated Current: 6, 10, 16, 20, 25, 32, 40, 50, 63A
    • Rated Sensitivity Current：10, 15, 30, 100, 300mA
    • Pole: 1P+N
    • Residual Current Type: A, AC

Breaking Capacity

AC: 6kA

Protection

    • Overload protection
    • Short circuit protection
    • Earthleakage protection
Safety Breaker

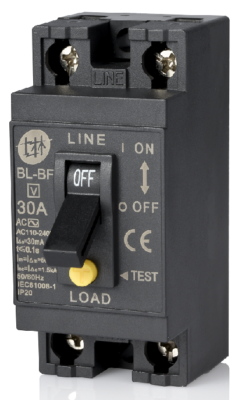

BL-BF V

Stantard: IEC 61008-1Product type: RCCBRated breaking capacity: 1.5kAPole: 2P0ERated voltage: AC110V~AC240VResidual current type: ACRated sensitivity current: 15, 30mA

Earth leakage protection

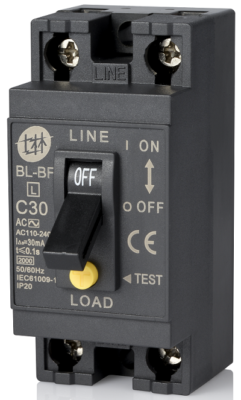

BL-BF L

Stantard: IEC 61009-1Product type: RCBORated breaking capacity: 2kAPole: 2P2ERated voltage: AC110V~AC240VResidual current type: ACRated sensitivity current: 15, 30mA

Earth leakage with overload protection

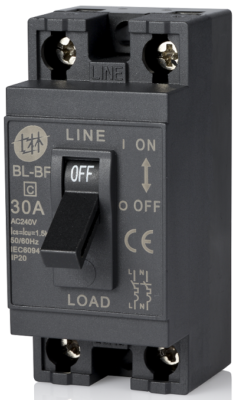

BL-BF C

Stantard: IEC 60947-2Product type: MCBRated breaking capacity: 1.5kAPole: 2P1ERated voltage: AC240VOverload protectionShort circuit protection

BM Series

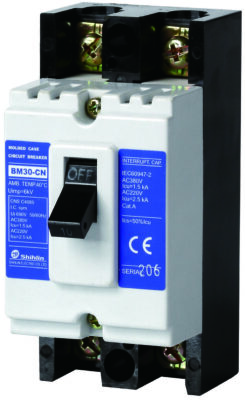

BM30-CN

Specification

    • Hydraulic magnetic
    • Standards: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 3.5.10.15.20.30A
    • Pole: 2P 3P
    • Breaking Capacity:Icu:
      • 220V/ 2.5kA (sym)
      • 380V/ 1.5kA (sym)
    • Ics = 50% Icu
    • Accessories:TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

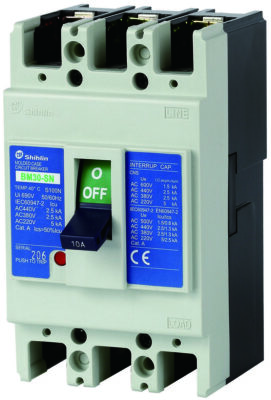

BM30-SN

Specification

    • Hydraulic magnetic
    • Standards: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 3.5.10.15.20.30A
    • Pole: 2P 3P 4P
    • Breaking Capacity:Icu:
      • 220V/ 5kA (sym)
      • 380V/ 2.5kA (sym)
      • 440V/ 2.5kA (sym)
    • Ics = 50% Icu
    • Accessories: AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

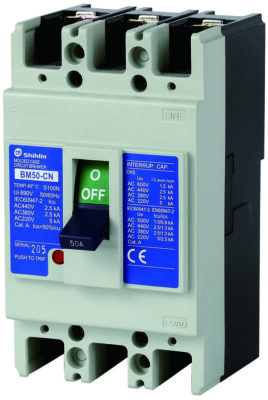

BM50-CN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50A
    • Number of poles: 2P 3P 4P
    • Rated breaking capacity:Icu:
      • 220V/ 5kA (sym)
      • 380V/ 2.5kA (sym)
      • 440V/ 2.5kA (sym)
    • Ics = 50% Icu
    • Optional accessories:AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

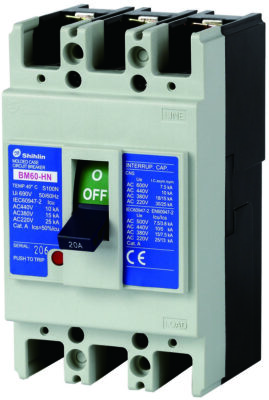

BM60-HN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50.60A
    • Pole: 2P 3P 4P
    • Breaking Capacity:Icu:
      • 220V/ 25kA (sym)
      • 380V/ 15kA (sym)
      • 440V/ 10kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

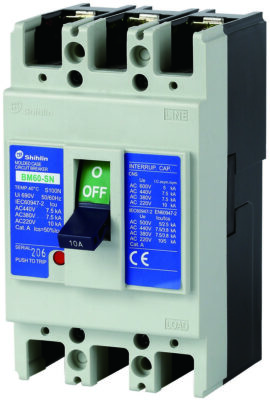

BM60-SN

Specification

    • Hydraulic magnetic
    • Standards: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50.60A
    • Pole: 2P 3P 4P
    • Breaking Capacity:Icu:
      • 220V/ 10kA (sym)
      • 380V/ 7.5kA (sym)
      • 440V/ 7.5kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

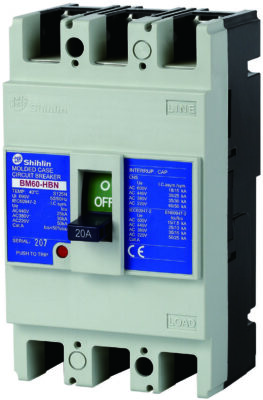

BM60-HBN

Specification

    • Hydraulic Magnetic
    • Standard: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50.60A
    • Pole: 2P 3P 4P
    • Breaking capacity:Icu:
      • 220V/ 50kA (sym)
      • 380V/ 30kA (sym)
      • 440V/ 25kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

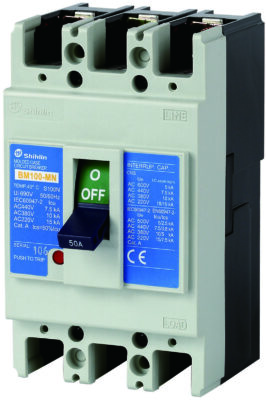

BM100-MN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50.60.75.100A
    • Pole: 2P 3P 4P
    • Breaking capacity:Icu:
      • 220V/ 15kA (sym)
      • 380V/ 10kA (sym)
      • 440V/ 7.5kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

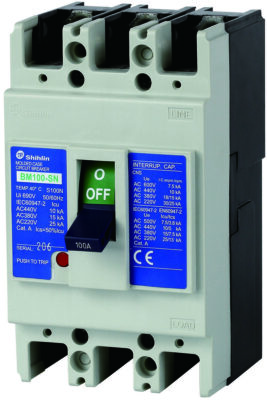

BM100-SN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50.60.75.100A
    • Pole: 2P 3P 4P
    • Breaking capacity:Icu:
      • 220V/ 25kA (sym)
      • 380V/ 15kA (sym)
      • 440V/ 10kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

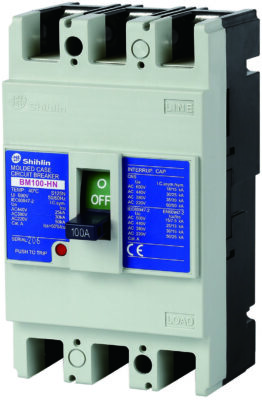

BM100-HN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Rated insulation voltage Ui: AC 690V
    • Rated current In: 10.15.20.30.40.50.60.75.100A
    • Pole: 2P 3P 4P
    • Breaking capacity:Icu:
      • 220V/ 50kA (sym)
      • 380V/ 30kA (sym)
      • 440V/ 25kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH125N(IP30.IP52).TC125N.TC125NS

Applications

    • Factory power system protection
    • Switchgear, Control Panel
BL Series - Earth Leakage Protection

BL50-SN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 15.20.30.40.50A
    • Pole: 3P 4P
    • Rated current sensitivity: 30/100/300/500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 10kA (sym)
      • 380V/ 7.5kA (sym)
      • 440V/ 7.5kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT(4P).EH100N(IP30.IP52).TC100N.TC100NS

Applications

    • Humid Work Place

BL100-SN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 15.20.30.40.50.60.75.100A
    • Pole: 3P 4P
    • Rated current sensitivity: 30/100/300/500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 25kA (sym)
      • 380V/ 15kA (sym)
      • 440V/ 10kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT(4P).EH125N(IP30.IP52).TC125N.TC125NS

Applications

    • Humid Work Place

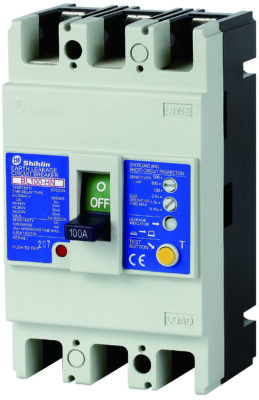

BL100-HN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 15.20.30.40.50.60.75.100A
    • Pole: 3P 4P
    • Rated current sensitivity: 30/100/300/500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 50kA (sym)
      • 380V/ 30kA (sym)
      • 440V/ 25kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT(4P).EH125N(IP30.IP52).TC125N.TC125NS

Applications

    • Humid Work Place

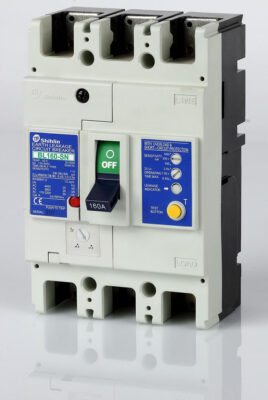

BL160-SN

Specification

    • Hydraulic magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400VRated current In: 125.140.160A
    • Pole: 3P 4P
    • Rated current sensitivity: 30mA ; 100-300-500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 50kA (sym)
      • 380V/ 30kA (sym)
      • 440V/ 25kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT(4P).EH125N(IP30.IP52).TC125N.TC125NS

Applications

  • Humid Work Place

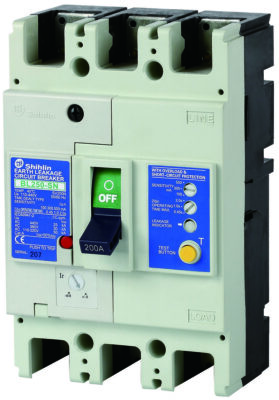

BL250-SN

Specification

    • Thermal magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 175.200.225.250A
    • Pole: 3P 4P
    • Rated current sensitivity: 30-100-500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 50kA (sym)
      • 380V/ 30kA (sym)
      • 440V/ 25kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH250N(IP30.IP52).TC250N.

Applications

    • Humid Work Place

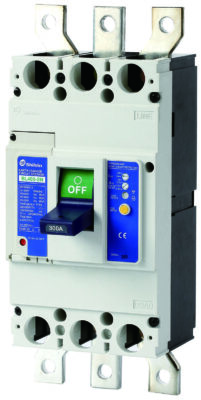

BL400-SN

Specification

    • Thermal magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 250.300.350.400A
    • Pole: 3P 4P
    • Rated current sensitivity: 30-100-500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 50kA (sym)
      • 380V/ 35kA (sym)
      • 440V/ 30kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH400N(IP30.IP52).TC400N.

Applications

    • Humid Work Place

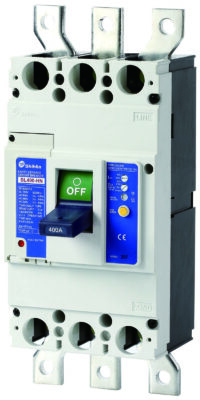

BL400-HN

Specification

    • Thermal magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 250.300.350.400A
    • Pole: 3P 4P
    • Rated current sensitivity: 30-100-500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.1-0.4-0.8-2.0s
    • Breaking capacity:Icu:
      • 220V/ 85kA (sym)
      • 380V/ 50kA (sym)
      • 440V/ 42kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH400N(IP30.IP52).TC400N.

Applications

    • Humid Work Place

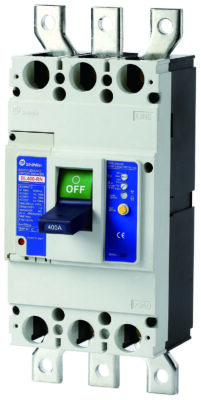

BL400-RN

Specification

    • Thermal magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 250.300.350.400A
    • Pole: 3P 4P
    • Rated current sensitivity: 30-100-500mA ; 100-300-500mA
    • Operating time: 0.04s(high speed) ; 0.45-1.0-2.0s
    • Breaking capacity:Icu:
      • 220V/ 100kA (sym)
      • 380V/ 70kA (sym)
      • 440V/ 55kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH400N(IP30.IP52).TC400N.

Applications

    • Humid Work Place

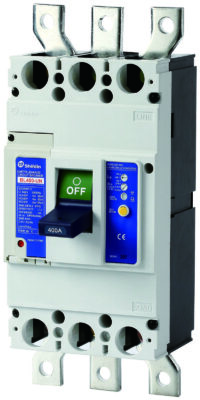

BL400-UN

Specification

    • Thermal magnetic
    • Standard: IEC60947-2
    • Voltage: 230V.400V
    • Rated current In: 250.300.350.400A
    • Pole: 3P 4PRated current sensitivity: 30-100-500mA ; 100-300-500mAOperating time: 0.04s(high speed) ; 0.45-1.0-2.0s
    • Breaking capacity:Icu:
      • 220V/ 125kA (sym)
      • 380V/ 85kA (sym)
      • 440V/ 85kA (sym)
    • Ics = 50% Icu
    • Accessories:AL.AUX.SHT.UVT.EH400N(IP30.IP52).TC400N.

Applications

    • Humid Work Place
BMA Series

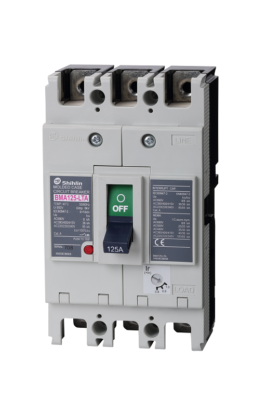

BMA125

Specification

    • Adjustable Thermal, Fixed Magnetic
    • Standard: IEC60947-2
    • Rated current: 15, 16, 20, 25, 30, 32, 40, 50, 60, 63, 75, 80, 100, 125A
    • Pole: 2P, 3P, 4P

Breaking Capacity

Model

STA

LTA

HTA

Icu

(kA)

690V

8kA

 8kA 10kA

380/415V

25kA

 36kA 50kA

220/240V

50kA

 85kA 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

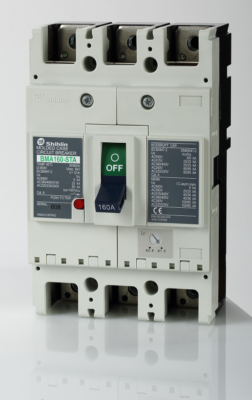

BMA160

Specification

    • Adjustable Thermal, Fixed Magnetic
    • Standard: IEC60947-2
    • Rated current: 40, 50, 60, 63, 70, 75, 80, 100, 125, 140, 150, 160A
    • Pole: 3P, 4P

Breaking Capacity

Model

STA

LTA

HTA

Icu

(kA)

690V

8kA

 8kA 10kA

380/415V

25kA

 36kA 50kA

220/240V

85kA

 85kA 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

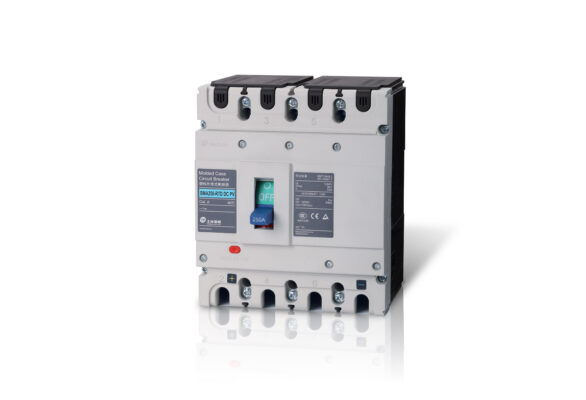

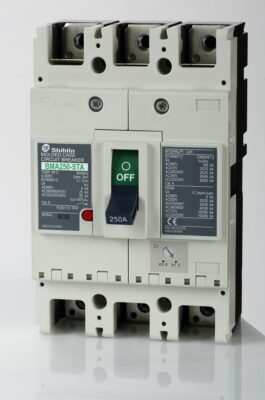

BMA250

Specification

    • Adjustable Thermal, Fixed Magnetic
    • Standard: IEC60947-2
    • Rated current: 175, 200, 225, 250A
    • Pole: 3P, 4P

Breaking Capacity

Model

STA

LTA

HTA

Icu

(kA)

690V

8kA

 8kA 10kA

380/415V

25kA

 36kA 50kA

220/240V

85kA

 85kA 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

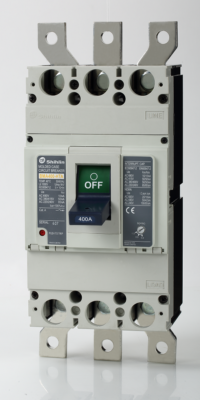

BMA400

Specification

    • Adjustable Thermal, Fixed Magnetic
    • Standard: IEC60947-2
    • Rated current: 250, 300, 350, 400A
    • Pole: 3P, 4P

Breaking Capacity

Model

STA

LTA

HTA

Icu

(kA)

690V

8kA

 10kA 15kA

380/415V

36kA

 50kA 70kA

220/240V

70kA

 85kA 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

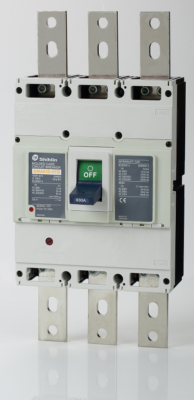

BMA630

Specification

    • Adjustable Thermal, Adjustable Magnetic
    • Standard: IEC60947-2
    • Rated current: 500, 600, 630A
    • Pole: 3P, 4P

Breaking Capacity

Model

HTA

RTA

Icu

(kA)

690V

10kA

 15kA

380/415V

50kA

 70kA

220/240V

85kA

 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

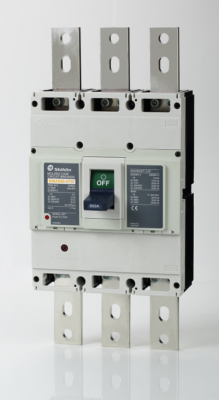

BMA800

Specification

    • Adjustable Thermal, Adjustable Magnetic
    • Standard: IEC60947-2
    • Rated current: 700, 800A
    • Pole: 3P, 4P

Breaking Capacity

Model

HTA

RTA

Icu

(kA)

690V

10kA

 15kA

380/415V

50kA

 70kA

220/240V

85kA

 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

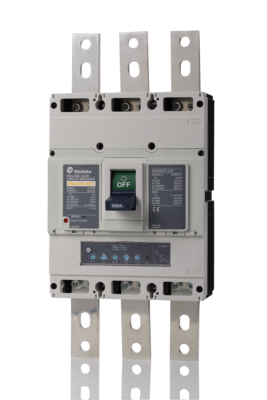

BMA630 Electronic type

Specification

    • Electronic Trip Unit
    • Standard: IEC60947-2
    • Rated current: 630A
    • Pole: 3P, 4P

Breaking Capacity

Model

HED

RED

Icu

(kA)

690V

10kA

 15kA

380/415V

50kA

 70kA

220/240V

85kA

 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

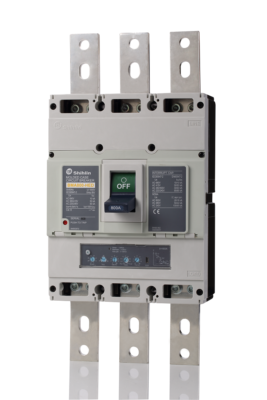

BMA800 Electronic type

Specification

    • Electronic Trip Unit
    • Standard: IEC60947-2
    • Rated current: 800A
    • Pole: 3P, 4P

Breaking Capacity

Model

HED

RED

Icu

(kA)

690V

10kA

 15kA

380/415V

50kA

 70kA

220/240V

85kA

 100kA

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection

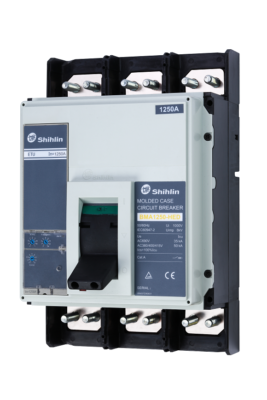

BMA1250 Electronic type

Specification

    • Electronic Trip Unit
    • Standard: IEC60947-2
    • Rated current: 1250A
    • Pole: 3P, 4P

Breaking Capacity

Model

HED

RED

Icu

(kA)

690V

35kA

 45kA

380/415V

50kA

 70kA

220/240V

–

–

Ics = 100%Icu

Protection

    • Overload protection
    • Short circuit protection
Accessories

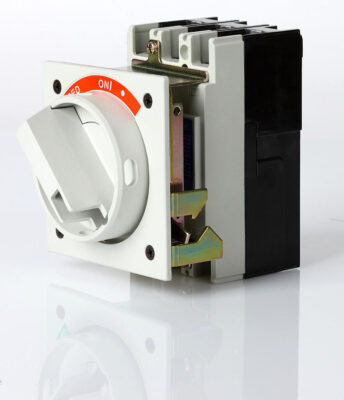

External Handle

Specification

    • EH-100N — 3P 4P — BM30-SN, BM50-CN, BM60-SN/HN, BM100-SN/MN, BL50-SN
    • EH-125N — 3P 4P — BM60HBN, BM100-HN, BM125-SN/HN, BL100-SN/HN
    • EH-250N — 3P 4P — BM100-HBN, BM160-SN/HN, BM250-SN/HN, BL160-SN, BL250-SN
    • EH-400N — 3P 4P — BM400-SN/HN/RN/UN, BL400-SN/HN/RN/UN
    • EH-800N — 3P 4P — BM630-SN/HN/RN/UN, BM800-CN/SN/HN/RN, BL630-HN/RN/UN, BL800-SN/HN/RN
    • EH-250H — 3P 4P — BM100-H/HC/HS, BM160-HB/HC/HS, BM250-HB/HC/HS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

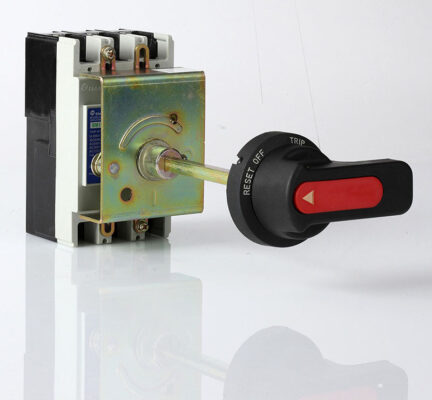

Manual Operation Device

Specification

    • MA-100N — 3P 4P — BM30-SN, BM50-CN, BM60-SN/HN, BM100-SN/MN, BL50-SN
    • MA-125N — 3P 4P — BM60HBN, BM100-HN, BM125-SN/HN, BL100-SN/HN
    • MA-250N — 3P 4P — BM100-HBN, BM160-SN/HN, BM250-SN/HN, BL160-SN, BL250-SN
    • MA-400N — 3P 4P — BM400-SN/HN/RN/UN, BL400-SN/HN/RN/UN
    • MA-800N — 3P 4P — BM630-SN/HN/RN/UN, BM800-CN/SN/HN/RN, BL630-HN/RN/UN, BL800-SN/HN/RN

Applications

    • Factory power system protection
    • Switchgear, Control Panel

Motor Operation Device

Specification

    • Applicable Voltage: DC24V, AC110V/DC110V, AC230V/DC220V
    • MT-100N — 3P 4P — BM30-SN, BM50-CN, BM60-SN/HN, BM100-SN/MN, BL50-SN

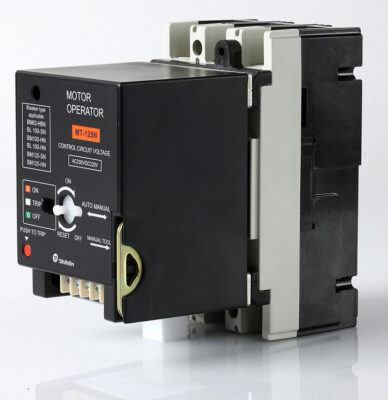

    • MT-125N — 3P 4P — BM60HBN, BM100-HN, BM125-SN/HN, BL100-SN/HN
    • MT-250N — 3P 4P — BM100-HBN, BM160-SN/HN, BM250-SN/HN, BL160-SN, BL250-SN
    • MT-400N — 3P 4P — BM400-SN/HN/RN/UN, BL400-SN/HN/RN/UN
    • MT-800N — 3P 4P — BM630-SN/HN/RN/UN, BM800-CN/SN/HN/RN, BL630-HN/RN/UN, BL800-SN/HN/RN
    • MT-250E — 3P 4P — BM100-H/HC/HS, BM160-HB/HC/HS, BM250-HB/HC/HS

Applications

    • Factory power system protection
    • Switchgear, Control Panel

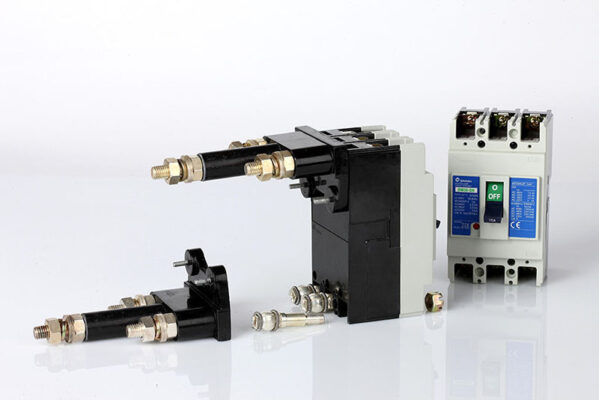

Rear Connection

Specification

    • PGI-100N50 — 3P — BM30-SN, BM50-CN, BM60-SN/HN/ BL50-SN (50A and below)
    • PGI-100N — 3P — BM60-SN/HN, BM100-SN/MN (60A and below)
    • PGI-125N50 — 3P — BM60-HBN, BM100-HN, BM125-SN/HN, BL100-SN/HN (50A and below)— 4P — BM100-HN, BM125-SN, BL100-SN/HN (50A and below)
    • PGI-120N — 3P — BM60-HBN, BM100-HN, BM125-SN/HN, BL100-SN/HN (60A and above)— 4P — BM100-HN, BM125-SN, BL100-SN/HN (60A and above)
    • PGI-250N — 3P 4P — BM100-HBN, BM160-SN/HN, BM250-SN/HN, BL160-SN, BL250-SN
    • PGI-400N — 3P 4P — BM400-SN/HN/RN/UN, BL400-SN/HN/RN/UN
    • PGI-800N — 3P 4P — BM630-SN/HN/RN/UN, BM800-CN/SN/HN/RN, BL630-HN/RN/UN, BL800-SN/HN/RN
    • PGI-BM250 — 3P — BM100-H/HC/HS, BM160-HB/HC/HS, BM250-HB/HC/HS

Applications

  • Factory power system protection
  • Switchgear, Control Panel

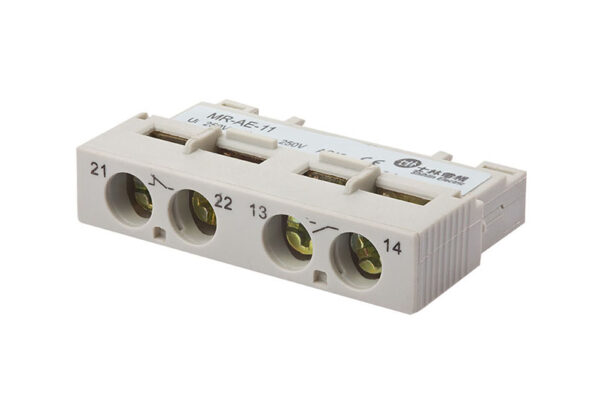

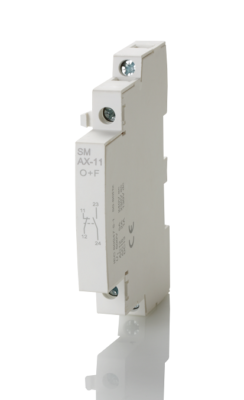

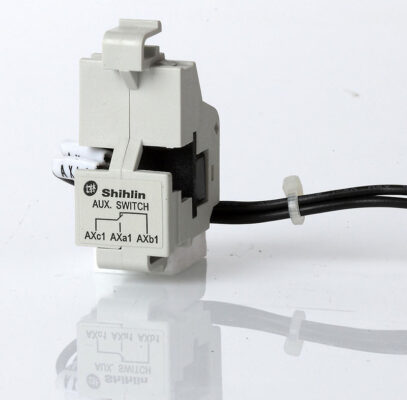

Auxiliary Contact

Specification

Auxiliary Contactor1COc-b : OFF & Trip position – NCON position -NOc-a : OFF & Trip position – NOON position – NC

Applications

  • Factory power system protection
  • Switchgear, Control Panel

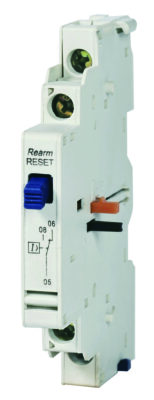

Alarm Switch

Specification

Alarm Switch1COc-b : ON/OFF position – NCTrip position -NOc-a : ON/OFF position – NOTrip position – NC

Applications

  • Factory power system protection
  • Switchgear, Control Panel

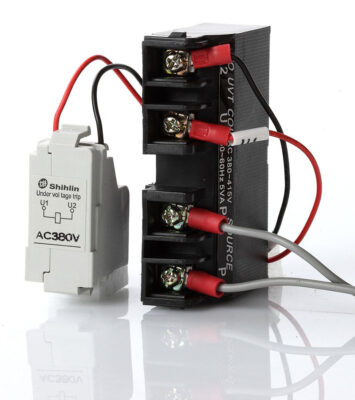

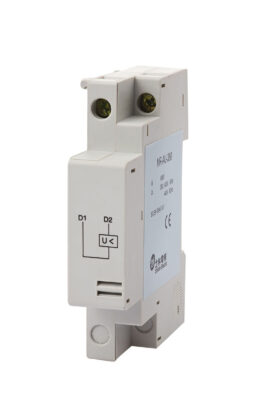

Under Voltage Trip

Specification

Under Voltage TripRated Voltage: 220V / 380VOperation voltage: 85%~110% of rated voltageBreaker trips: 35%~70% of rated voltage

Applications

  • Factory power system protection
  • Switchgear, Control Panel
Fixed Type

BW-1600

Feature
    • Mounting type: Fixed type
    • Operation mode: Electric and manual operation
    • Number of poles: 3 and 4
    • 5 Tripping characteristic curves for different protection
    • 3 Intelligent controller for different needed
    • Compact size: 60% smaller

Specification

    • Standard: IEC60947-2
    • Fixed type
    • Rated Current: 630, 800, 1000, 1250, 1600A
    • Pole: 3P / 4P
    • Frequency: 50 / 60Hz
    • Rated Voltage Ue: 690V
Model SN
Icu / Ics (kA) 690V 50 / 50
380/400/415V 65 / 65
Icw (kA) 1sec 690V 42 / 42
415V 50 / 50

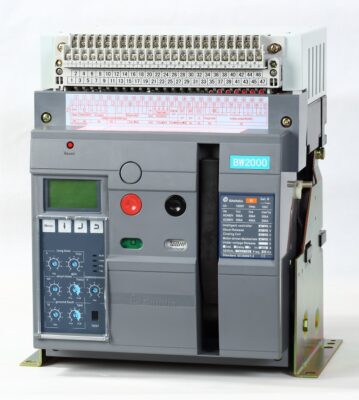

BW-2000

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Fixed type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 630.800.1000.1250.1600.2000A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 85kA 440V/ 75kA 690V/ 50kA Ics = 65% IcuIcw: 380V/ 50kA @1 sec
      • HN TypeIcu:380V/ 90kA 440V/ 79kA 690V/ 55kA Ics = 100% IcuIcw: 380V/ 65kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

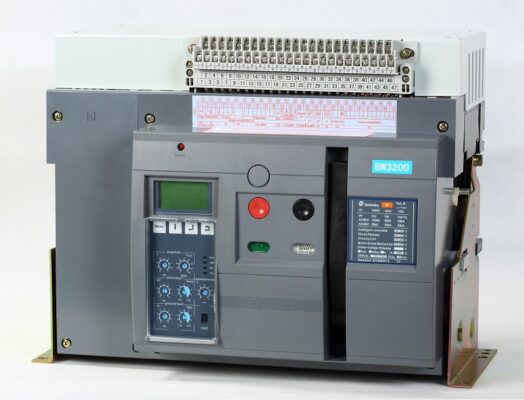

BW-3200

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Fixed type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 2000.2500.3200A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 100kA 440V/ 85kA 690V/ 65kA Ics = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu:380V/ 105kA 440V/ 90kA 690V/ 65kA Ics = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

BW-4000

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Fixed type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 3200.4000A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 100kA 440V/ 85kA 690V/ 65kA Ics = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu:380V/ 105kA 440V/ 90kA 690V/ 75kA Ics = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch
Draw Out Type

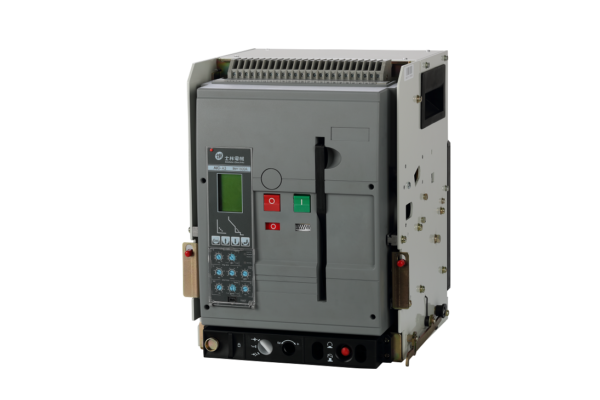

BW-1600

Feature

    • Mounting type: Draw out type
    • Operation mode: Electric and manual operation
    • Number of poles: 3 and 4
    • 5 Tripping characteristic curves for different protection
    • 3 Intelligent controller for different needed
    • Compact size: 60% smaller

Specification

    • Standard: IEC60947-2
    • Fixed type
    • Rated Current: 630, 800, 1000, 1250, 1600A
    • Pole: 3P / 4P
    • Frequency: 50 / 60Hz
    • Rated Voltage Ue: 690V
Model SN
Icu / Ics (kA) 690V 50 / 50
380/400/415V 65 / 65
Icw (kA) 1sec 690V 42 / 42
415V 50 / 50

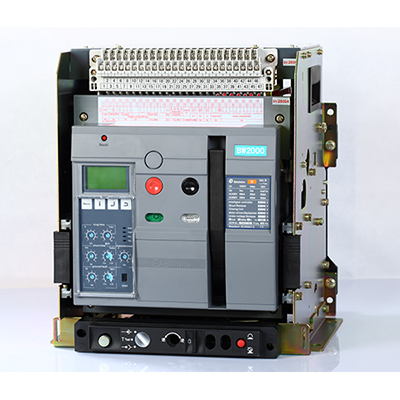

BW-2000

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 630.800.1000.1250.1600.2000A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 85kA 440V/ 75kA 690V/ 50kA Ics = 65% IcuIcw: 380V/ 50kA @1 sec
      • HN TypeIcu:380V/ 90kA 440V/ 79kA 690V/ 55kA Ics = 100% IcuIcw: 380V/ 65kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

BW-3200

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 2000.2500.3200A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 100kA 440V/ 85kA 690V/ 65kA Ics = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu:380V/ 105kA 440V/ 90kA 690V/ 65kA Ics = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

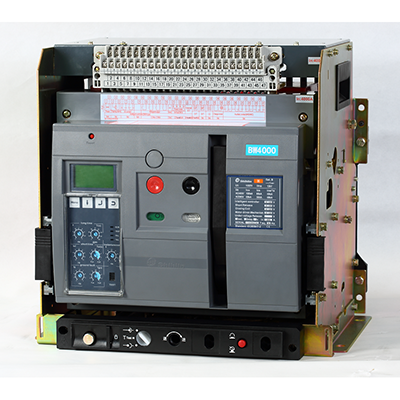

BW-4000

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 3200.4000A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu: 380V/ 100kA 440V/ 85kA 690V/ 65kAIcs = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu: 380V/ 105kA 440V/ 90kA 690V/ 75kAIcs = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

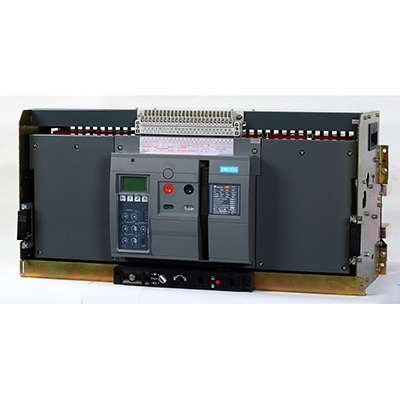

BW-6300

Specification

    • Intelligent controller:Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 4000.5000.6300A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu: 380V/ 130kA 440V/ 100kA690V/ 75kA Ics = 100% IcuIcw: 380V/ 100kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch
Magnetic Contactor

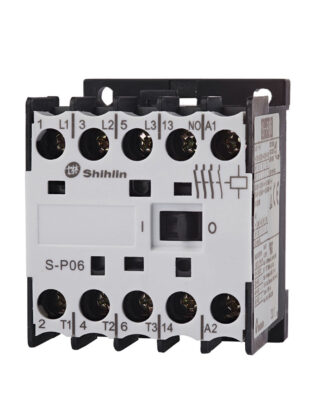

S-P06

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P06/S-2xP06
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P06
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 1.5/2/6　380V→kW/HP/A: 3.5/4/6
    • Contacts　＊.non-reversing: 1NO　＊.reversing: 2×1NC

Applications

    • Circuit Control

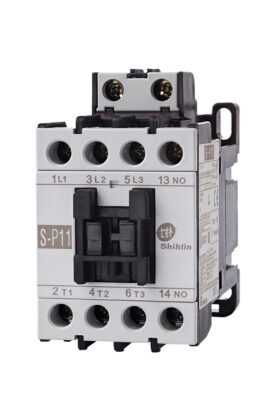

S-P11

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P11/S-2xP11
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P11/MSO-2xP11　─Enclosure: non-reversing/reversing: MS-P11/MS-2XP11　─Enclosure with Push Button: non-reversing: MS-P11PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 3.5/4.5/13　380V→kW/HP/A: 5.5/7.5/12
    • Contacts　＊.non-reversing: 1NO　＊.reversing: 2×1NC
    • Accessories　＊.Mechanical Interlock: MPU-11　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

S-P15

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P15/S-2xP15
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P15/MSO-2xP15　─Enclosure: non-reversing/reversing: MS-P15/MS-2xP15　─Enclosure with Push Button: non-reversing: MS-P15PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 4.5/6/18　380V→kW/HP/A: 7.5/10/16
    • Contacts　＊.non-reversing: 1NO　＊.reversing: 2×1NC
    • Accessories　＊.Mechanical Interlock: MPU-11　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

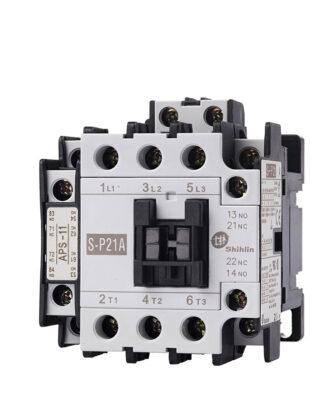

S-P21A

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P21A/S-2xP21A
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P21A/MSO-2xP21A　─Enclosure: non-reversing/reversing: MS-P21A/MS-2xP21A　─Enclosure with Push Button: non-reversing: MS-P21APB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 5.5/7.5/24　440V→kW/HP/A: 11/15/21
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC
    • Accessories　＊.Mechanical Interlock: MPU-21　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

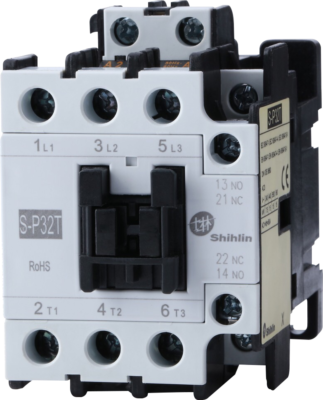

S-P32T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P32T /S-2xP32T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P32T /MSO-2xP32T 　─Enclosure: non-reversing/reversing: MS-P32T /MS-2xP32T 　─Enclosure with Push Button: non-reversing: MS-P32TPB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 7.5/10/32　380V→kW/HP/A: 15/20/32
    • Contacts　＊.non-reversing: 1NO1NC　＊.reversing: 2×1NO1NC
    • Accessories　＊.Mechanical Interlock: MPU-21　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

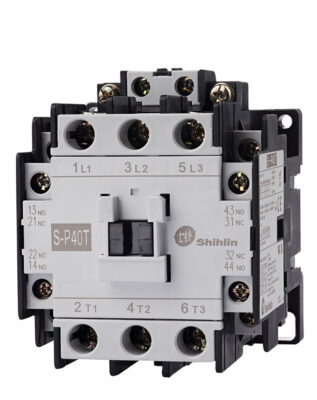

S-P40T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P40T /S-2xP40T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P40T /MSO-2xP40T 　─Enclosure: non-reversing/reversing: MS-P40T /MS-2xP40T 　─Enclosure with Push Button: non-reversing: MS-P40T PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 11/15/44　380V→kW/HP/A: 22/30/40
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC
    • Accessories　＊.Mechanical Interlock: MPU-11　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

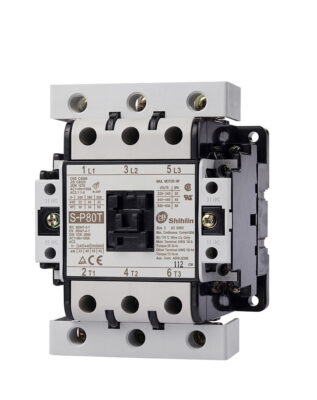

S-P80T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P80T /S-2xP80T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P80T /MSO-2xP80T 　─Enclosure: non-reversing/reversing: MS-P80T /MS-2xP80T 　─Enclosure with Push Button: non-reversing: MS-P80T PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 22/30/80　380V→kW/HP/A: 45/60/80
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC
    • Accessories　＊.Mechanical Interlock: MPU-50　＊.Surge Absorber

Applications

    • Circuit Control

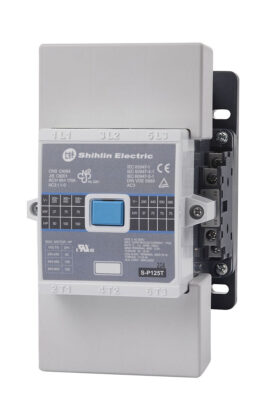

S-P125T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P125 /S-2xP125
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P125 /MSO-2xP125 　─Enclosure: non-reversing/reversing: MS-P125 /MS-2xP125　─Enclosure with Push Button: non-reversing: NA
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 37/50/135　380V→kW/HP/A: 75/100/130
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC

Applications

    • Circuit Control

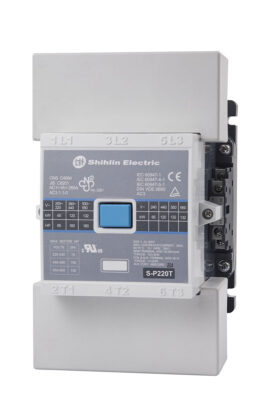

S-P220T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P220/S-2xP220
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P220/MSO-2xP220　─Enclosure: non-reversing/reversing: MS-P220/MS-2xP220　─Enclosure with Push Button: non-reversing: MS-P220T PB
    • Rated capacity IEC AC3, 3Phase　220~240V→kW/HP/A: 65/85/225　380~440V→kW/HP/A: 120/160/220
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC

Applications

    • Circuit Control

S-P09

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P09/S-2xP09
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P09
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 2.2/3/9　380V→kW/HP/A: 4/5.5/9
    • Contacts　＊.non-reversing: 1NO　＊.reversing: 2×1NC

Applications

    • Circuit Control

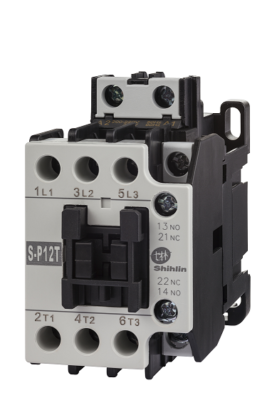

S-P12T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P12T/S-2xP12T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P12T/MSO-2xP12T　─Enclosure: non-reversing/reversing: MS-P12T/MS-2XP12T　─Enclosure with Push Button: non-reversing: MS-P12TPB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 3.5/4.5/13　380V→kW/HP/A: 5.5/7.5/12
    • Contacts　＊.non-reversing: 1NO 1NC
    • Accessories　＊.Mechanical Interlock: MPU-11　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

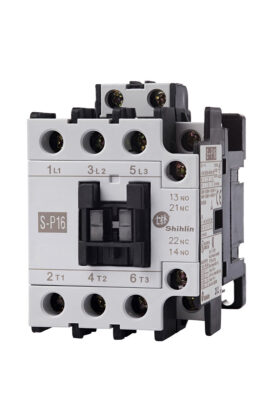

S-P16

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P16/S-2xP16
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P16/MSO-2xP16　─Enclosure: non-reversing/reversing: MS-P16/MS-2xP16　─Enclosure with Push Button: non-reversing: MS-P16PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 4.5/6/18　380V→kW/HP/A: 7.5/10/18
    • Contacts　＊.non-reversing: 1NO1NC　＊.reversing: 2×1NO1NC
    • Accessories　＊.Mechanical Interlock: MPU-21　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

S-P25

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P25/S-2xP25
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P25/MSO-2xP25　─Enclosure: non-reversing/reversing: MS-P25/MS-2xP25　─Enclosure with Push Button: non-reversing: MS-P25PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 6.5/8.5/26　380V→kW/HP/A: 12/16/23
    • Contacts　＊.non-reversing: 1NO1NC　＊.reversing: 2×1NO1NC
    • Accessories　＊.Mechanical Interlock: MPU-21　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

S-P35T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P35T /S-2xP35T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P35T /MSO-2xP35T　─Enclosure: non-reversing/reversing: MS-P35T /MS-2xP35T 　─Enclosure with Push Button: non-reversing: MS-P35T PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 9/12.5/35　380V→kW/HP/A: 18.5/25/30
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC
    • Accessories　＊.Mechanical Interlock: MPU-11　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

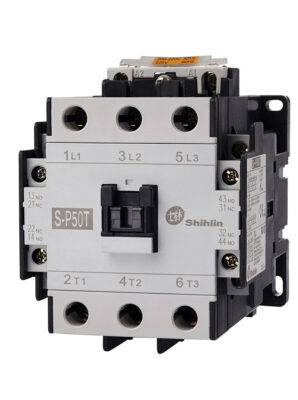

S-P50T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P50T /S-2xP50T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P50T /MSO-2xP50T 　─Enclosure: non-reversing/reversing: MS-P50T /MS-2xP50T 　─Enclosure with Push Button: non-reversing: MS-P50T PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 15/20/58　380V→kW/HP/A: 30/40/52
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC
    • Accessories　＊.Mechanical Interlock: MPU-11　＊.Surge Absorber　＊.Auxiliary Contact

Applications

    • Circuit Control

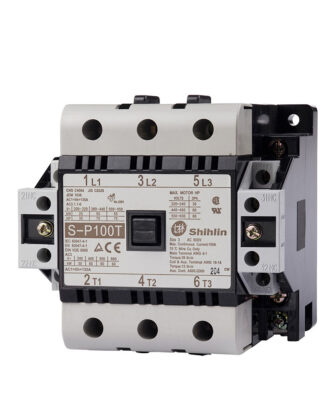

S-P100T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P100T /S-2xP100T
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P100T /MSO-2xP100T 　─Enclosure: non-reversing/reversing: MS-P100T /MS-2xP100T 　─Enclosure with Push Button: non-reversing: MS-P100T PB
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 30/40/105　380V→kW/HP/A: 60/80/105
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC

Applications

    • Circuit Control

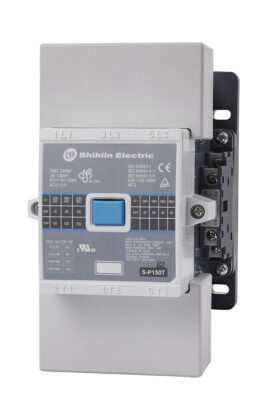

S-P150T

Specification

    • Standard: GB 14048.4, IEC 60947-4-1, EN 60947-4-1, DIN VDE 0660, UL 508, CSA-C22.2, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-P150 /S-2xP150
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P150 /MSO-2xP150　─Enclosure: non-reversing/reversing: MS-P150 /MS-2xP150　─Enclosure with Push Button: non-reversing: NA
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 45/60/165　380V→kW/HP/A: 90/125/160
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC

Applications

    • Circuit Control

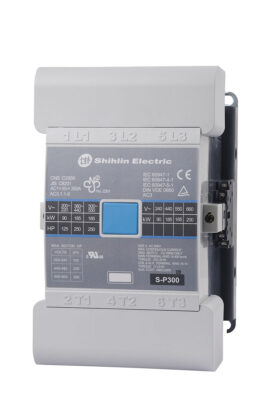

S-P300T

Specification

    • Standard: GB 14048.4, IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Magnetic contactor: non-reversing/reversing: S-2xP300 / S-2xP300
    • Magnetic Switch　─Open Type: non-reversing/reversing: MSO-P300 / MSO-2xP300　─Enclosure: non-reversing/reversing: MS-P300 / MS-2xP300　─Enclosure with Push Button: non-reversing: NA
    • Rated capacity IEC AC3, 3Phase　240V→kW/HP/A: 90/125/300　380V→kW/HP/A: 160/220/300
    • Contacts　＊.non-reversing: 2NO2NC　＊.reversing: 2×2NO2NC

Applications

    • Circuit Control

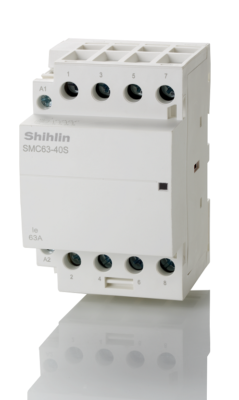

Modular Contactor

SMC series

Feature

    • Modular contactors are mainly use in power system that is AC 50/60 Hz with rated operating voltage up to 400V and rated operating current up to 63A. When use for catalog AC-7a (no sense or low sense load, resistance furnace, low inductance loads household appliance) and AC-7b (household motor load), contactors are use as long distance control.

Specification

    • Rated Current: 16, 25, 40, 63A
    • Rated Operational Voltage (Ue): 2P: AC230V / 4P: AC400V
    • Rated impulse withstand voltage: 40,000V
    • Contacts: 1NO1NC, 2NO, 2NC, 2NO2NC, 1NO3NC, 3NO1NC, 4NO, 4NC

Application

    • Lighting Control & Switch

SMC Accessory

Accessory

    • SMAX11: Side Mount Auxiliary Contacts
    • SMSB: 9mm Spacing Block

Specification

    • SMAX11: Contacts: 1NO1NC, Voltage: 500V
    • SMSB: Dimension: 9mm

BW-3200

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 2000.2500.3200A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 100kA 440V/ 85kA 690V/ 65kA Ics = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu:380V/ 105kA 440V/ 90kA 690V/ 65kA Ics = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

BW-4000

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 3200.4000A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu: 380V/ 100kA 440V/ 85kA 690V/ 65kAIcs = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu: 380V/ 105kA 440V/ 90kA 690V/ 75kAIcs = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

BW-6300

Specification

    • Intelligent controller:Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 4000.5000.6300A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu: 380V/ 130kA 440V/ 100kA690V/ 75kA Ics = 100% IcuIcw: 380V/ 100kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

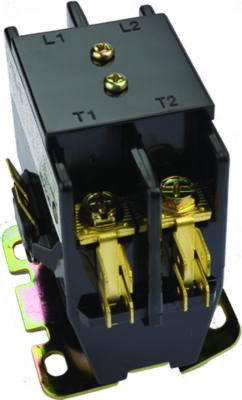

Definite Purpose Contactor

SF20

Specification

    • Standard: IEC-60947-4-1, UL508, CSA C22.2, ARI 780/790
    • Type: 　─1P: SF20C1　─2P: SF20C2　─1P＋Shunt: SF20C3
    • Start current(Per pole): AC240/AC480/AC600: 120/100/80
    • Start current(1P, 2 pole): AC240/AC480/AC600: 120/100/80
    • Resistive Amps Rating: 30A
    • FLA: 20A

Applications

    • Air Conditioning
    • Refrigerator

SF25

Specification

    • Standard: IEC-60947-4-1, UL508, CSA C22.2, ARI 780/790
    • Type: 　─1P: SF25C1　─2P: SF25C2　─1P＋Shunt: SF25C3
    • Start current(Per pole): AC240/AC480/AC600: 150/125/100
    • Start current(1P, 2 pole): AC240/AC480/AC600: 150/125/100
    • Resistive Amps Rating: 35A
    • FLA: 25A

Applications

    • Air Conditioning
    • Refrigerator

SF30

Specification

    • Standard: IEC-60947-4-1, UL508, CSA C22.2, ARI 780/790
    • Type: 　─1P: SF30C1　─2P: SF30C2　─1P＋Shunt: SF30C3
    • Start current(Per pole): AC240/AC480/AC600: 180/150/120
    • Start current(1P, 2 pole): AC240/AC480/AC600: 180/150/120
    • Resistive Amps Rating: 40A
    • FLA: 30A

Applications

    • Air Conditioning
    • Refrigerator

SF35

Specification

    • Standard: IEC-60947-4-1, UL508, CSA C22.2, ARI 780/790
    • Type：　─1P: SF35C1　─2P: SF35C2　─1P＋Shunt: SF35C3
    • Start current(Per pole): AC240/AC480/AC600: 180/150/120
    • Start current(1P, 2 pole): AC240/AC480/AC600: 210/175/140
    • Resistive Amps Rating: 50A
    • FLA: 35A

Applications

    • Air Conditioning
    • Refrigerator

SF40

Specification

    • Standard: IEC-60947-4-1, UL508, CSA C22.2, ARI 780/790
    • Type: 　─1P: SF40C1　─2P: SF40C2　─1P＋Shunt: SF40C3
    • Start current(Per pole): AC240/AC480/AC600: 180/150/120
    • Start current(1P, 2 pole): AC240/AC480/AC600: 240/200/160
    • Resistive Amps Rating: 50A
    • FLA: 40A

Applications

    • Air Conditioning
    • Refrigerator
Capacitor Contactor

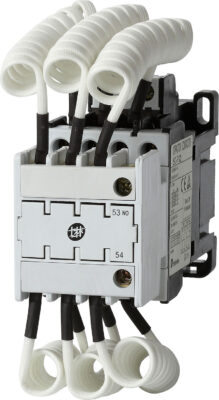

SC-P12

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 6.7/18　400~440V: 12.5/16　550~600V: 18/15
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose

SC-P16

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 8.5/22　400~440V: 16.7/22　550~600V: 24/20
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose

SC-P20

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 10/26　400~440V: 20/26　550~600V: 30/25
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose

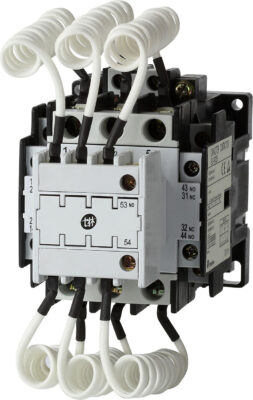

SC-P25

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 15/39　400~440V: 25/33　550~600V: 36/30
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose

SC-P33

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 20/48　400~440V: 33.3/44　550~600V: 48/40
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose

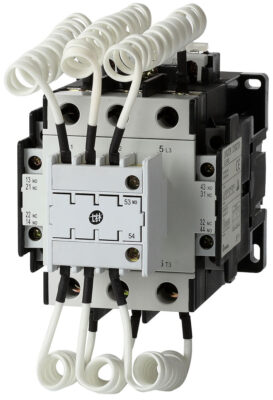

SC-P45

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 25/66　400~440V: 45/59　550~600V: 58/49
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose

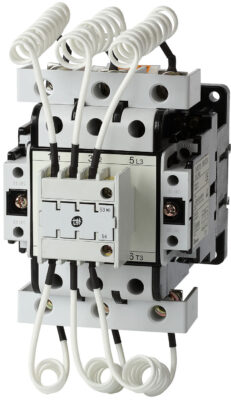

SC-P60

Specification

    • Standard: IEC 60947-5-1, EN 60947-5-1, DIN VDE 0660, JIS C8201, JEM 1038
    • Rated capacity IEC AC-6b, 3 Phase　kvar/A　220~240V: 35/92　400~440V: 60/86　550~600V: 75/63
    • Mechanical/Electrical: 5 / 0.3 (Million)

Applications

    • Capacitor Purpose
Magnetic Control Relay

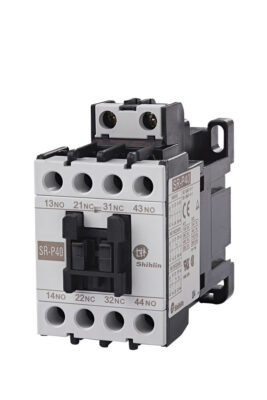

SR-P40

Specification

    • Standard: IEC 60947-4-1
    • Contacts:　4NO　3NO1NC　2NO2NC
    • Voltage(Ui)(V): 660V
    • Rated capacity (IEC, AC15):　220V: 1.6A　380V: 0.95A
    • Rated Continous Current(Ith)(A): 16A

Applications

    • Circuit Control (High Surge Work Place)

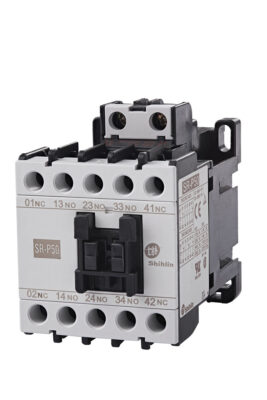

SR-P50

Specification

    • Standard: IEC 60947-4-1
    • Contacts: 　5NO, 4NO1NC　3NO2NC, 2NO3NC
    • Voltage(Ui)(V): 660V
    • Rated capacity (IEC, AC15):　220V: 1.6A　380V: 0.95A
    • Rated Continous Current(Ith)(A)：16A

Applications

    • Circuit Control (High Surge Work Place)

BW-3200

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 2000.2500.3200A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu:380V/ 100kA 440V/ 85kA 690V/ 65kA Ics = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu:380V/ 105kA 440V/ 90kA 690V/ 65kA Ics = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

BW-4000

Specification

    • Intelligent controller: Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 3200.4000A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu: 380V/ 100kA 440V/ 85kA 690V/ 65kAIcs = 65% IcuIcw: 380V/ 65kA @1 sec
      • HN TypeIcu: 380V/ 105kA 440V/ 90kA 690V/ 75kAIcs = 100% IcuIcw: 380V/ 85kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch

BW-6300

Specification

    • Intelligent controller:Standard type(M).Communication(H)
    • Standard: IEC60947-2
    • Type: Drawout type
    • Voltage Ue: 690V
    • Rated isolated voltage Ui: 1000V
    • Current In: 4000.5000.6300A
    • Rated current adjusting: 0.4~1.0In
    • Control voltage: AC110V.AC220V.AC380V DC110V.DC220V
    • Pole: 3P 4P
    • Contacts: 4NO 4NC
    • Breaking capacity:
      • HS TypeIcu: 380V/ 130kA 440V/ 100kA690V/ 75kA Ics = 100% IcuIcw: 380V/ 100kA @1 sec

Applications

    • Power System Controls
    • Auto Transfer Switch
Thermal Overload Relay

TH-P09

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P09)　3 elements: TH-P09　Phase Failure Protection: TH-P09PP
    • Rated current range: 0.13A-7.5A　※adjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P12

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P12(R)　3 elements: TH-P12E(R)　Phase Failure Protection: TH-P12PP(R)　※「R」: installation base
    • Rated current range: 0.25A-15A　※adjust range ±20%
    • Contacts: 1NO1NC
    • Installation base: UATP12

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P18

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P18(R)　3 elements: TH-P18(R)　Phase Failure Protection: TH-P18PP(R)　※「R」: installation base
    • Rated current range: 0.25A-21A　※adjust range ±20%
    • Contacts: 1NO1NC
    • Installation base: UATP12

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P60

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P60　3 elements: TH-P60E 　Phase Failure Protection: TH-P60PP　
    • Rated current range: 11A-54A　※adjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P60TA

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type:　2 elements: TH-P60TA　3 elements: TH-P60ETA　Phase Failure Protection: TH-P60TAPP
    • Rated current range: From 67A to 80A　※adjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P120

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P120　3 elements: TH-P120E 　Phase Failure Protection: TH-P120PP
    • Rated current range: 40A-80A　※adjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P120TA

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P120TA　3 elements: TH-P120ETA　Phase Failure Protection: TH-P120TAPP
    • Rated current range: From 105A to 160A　※adjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P220T

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P220　3 elements: TH-P220E　Phase Failure Protection: TH-P220PP
    • Rated current range: From 80A to 200A　※adjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P400

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type: 　2 elements: TH-P400CT　3 elements: TH-P400ECT 　Phase Failure Protection: TH-P400CTPP　
    • Rated current range: From 105A to 350A　※agjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor

TH-P600CT

Specification

    • Standard: IEC-60947-5-1, EN 60947-5-1
    • Type:　2 elements: TH-P600CT　3 elements: TH-P600ECT 　Phase Failure Protection: TH-P600CTPP
    • Rated current range: From 260A to 500A　※agjust range ±20%
    • Contacts: 1NO1NC

Applications

    • Circuit Protection
    • Use As Switch With Contactor
Star-Delta Starter

EYD-P21

Specification

    • Type:　Open Type: SDO-P21(T)　Enclosure: SDE-P21(T)　Enclosure with meter: SDA-P21 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 11 / 15　　　　　380-440V / 19 / 25

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P35

Specification

    • Type:　Open Type: SDO-O-P35(T)　Enclosure: SDE-P35(T)　Enclosure with meter: SDA-P35 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 19 / 25　　　　　380-440V / 30 / 40

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P50

Specification

    • Type:　Open Type: SDO-P50(T)　Enclosure: SDE-P50(T) 　Enclosure with meter: SDA-P50 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 22 / 30　　　　　380-440V / 45 / 60

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P60

Specification

    • Type:Open Type: SDO-P60(T)　Enclosure: SDE-P60(T) 　Enclosure with meter: SDA-P60 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 30 / 40　　　　　380-440V / 55 / 75

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P80

Specification

    • Type:　Open Type: SDO-P80(T)　Enclosure: SDE-P80(T) 　Enclosure with meter: SDA-P80 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 37 / 50　　　　　380-440V / 75 / 100

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P100

Specification

    • Type:　Open Type: SDO-P100(T)　Enclosure: SDE-P100(T) 　Enclosure with meter: SDA-P100 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 45 / 60　　　　　380-440V / 90 / 125

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P125

Specification

    • Type: 　Open Type: SDO-P125(T)　Enclosure: SDE-P125(T) 　Enclosure with meter: SDA-P125 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 55 / 75　　　　　380-440V / 110 / 150

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P150

Specification

    • Type:　Open Type: SDO-P150(T)　Enclosure: SDE-P150(T) 　Enclosure with meter: SDA-P150 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 75 / 100　　　　　380-440V / 132 / 180

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery

EYD-P220

Specification

    • Type:　Open Type: SDO-P220(T)　Enclosure: SDE-P220(T) 　Enclosure with meter: SDA-P220 ※(T) – with CT
    • Rated Capacity: V / KW / HP　　　　　220-220V / 110 / 150　　　　　380-440V / 200 / 260

Applications

    • Water Pump, Air compressor
    • Punching Machine
    • Belt Convery
Push Button

PB-2

Specification

    • Contact:　│　a(ON)　│　ｂ(OFF)
    • Weight: 72.5g

Applications

    • Indoor Machine Control

PB-3

Specification

    • Contact:　│　FWD　│　REV　│　OFF
    • Weight: 110g

Applications

    • Indoor Machine Control
Auxiliary Contact

AP-2P

Specification

    • AP-2P Frontal Type
    • Type: AP-02/AP-11/AP-20 : SR-P40, SR-P50, S-P11~S-P80T, SD-P11~SD-P21
    • Contacts: 2NC, 1NO1NC, 2NO
    • Set up mode: Frontal Type
    • Rated Current/AC15:　220V- 16A　380V- 0.95A
    • Ith(A): 16A

Applications

    • Use with Contactor

AP-4P

Specification

    • AP-4P Frontal Type
    • Type: AP-22/AP-31/AP-40 : SR-P40, SR-P50, S-P11~S-P80T, SD-P11~SD-P21
    • Contacts: 2NO2NC, 3NO1NC, 4NO
    • Set up mode: Frontal Type◎Rated Current/AC15:　220V- 16A　380V- 0.95A
    • Ith(A)”16A

Applications

    • Use with Contactor

AP-lateral type

Specification

    • AP-lateral type
    • Type: APS-11 : SR-P40, SR-P50, S-P11~S-P60T, SD-P11~SD-P21APS-11 : S-P125, S-P150T, S-P200T, S-P220T, S-P300T, S-P400T,
    • Contacts: 1NO1NC
    • Set up mode: lateral type
    • Rated current/AC15:　220V- 16A　380V- 0.95A
    • (Ith)(A): 16A

Applications

    • Use with Contactor
MR Series

MR 32AF

Feature

    • Standard: IEC 60947-2, IEC 60947-4
    • 50% Less wiring: MCCB+Contactor+TOR → MMS+Contactor
    • Compact size: Save 57% space
    • Type: Toggle / Rotary
    • Green design: Recyclable plastic, no cadmium connection, RoHs
    • Tool free installation: 35mm Din-rail mounting

Specification

230/240V 400/415V 440V 500V 690V
In Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics
A kA kA kA kA kA kA kA kA kA kA
0.16 100 100 100 100 100 100 80 80 80 80
0.25 100 100 100 100 100 100 80 80 80 80
0.4 100 100 100 100 100 100 80 80 80 80
0.63 100 100 100 100 100 100 80 80 80 80
1 100 100 100 100 100 100 80 80 80 80
1.6 100 100 100 100 100 100 80 80 80 80
2.5 100 100 100 100 100 100 80 80 3 2.25
4 100 100 100 100 100 100 80 80 3 2.25
6.3 100 100 100 100 50 50 50 50 3 2.25
10 100 100 100 100 15 15 10 10 3 2.25
14 100 100 15 7.5 8 4 6 4.5 3 2.25
18 100 100 15 7.5 8 4 6 4.5 3 2.25
23 50 50 15 6 6 3 4 3 3 2.25
25 50 50 15 6 6 3 4 3 3 2.25
32 50 50 10 5 6 3 4 3 3 2.25

MR 65AF

Feature

    • Standard: IEC 60947-2, IEC 60947-4
    • 50% Less wiring: MCCB+Contactor+TOR → MMS+Contactor
    • Compact size: Save 57% space
    • Type: Rotary
    • Green design: Recyclable plastic, no cadmium connection, RoHs
    • Tool free installation: 35mm Din-rail mounting

Specification

230/240V 400/415V 440V 500V 690V
In Icu Ics Icu Ics Icu Ics Icu Ics Icu Ics
A kA kA kA kA kA kA kA kA kA kA
13 100 100 100 100 50 50 12 6 6 3
18 100 100 100 100 50 50 12 6 6 3
25 100 100 100 100 50 50 12 6 6 3
32 100 100 100 100 50 50 12 6 6 3
40 100 100 50 50 50 50 12 6 6 3
50 100 100 50 50 50 50 12 6 6 3
65 100 100 50 50 50 50 12 6 6 3
Accessories

Auxiliary Switch

MR-AE: Frontal mounting

    • MR-AE-11(1NO1NC)
    • MR-AE-20(2NO)

MR-AN: Side mounting

    • MR-AN-11(1NO1NC)
    • MR-AN-20(2NO)

Shunt Trip Relay

MR-AS

Under Voltage Trip Relay

MR-AU

Alarm Switch

MR-AM

BHP

BHP20

Specification

    • Standards: IEC61643, IEC61312-1, 61643-1, 61000-5-6 VED0675,UL14492-2,UL1283,CSA22.2
    • 1P 1P+1 1P+N 3P 3P+1 3P+N
    • Uc(V)(AC): 320V
    • In(kA))(8/20μs): 10
    • Imax(kA)(8/20μs) Class II: 20
    • DIN RAIL TYPE

Applications

    • Wind Power Turbine
    • Street Light
    • Factory/Home circuit Protection

BHP40

Specification

    • Standards: IEC61312-1, 61643-1, 61000-5-6 VED0675,UL14492-2,UL1283,CSA22.2
    • 1P 1P+1 1P+N 3P 3P+1 3P+N
    • Uc(V)(AC): 385V
    • In(kA))(8/20μs): 20
    • Imax(kA)(8/20μs) Class II: 40
    • DIN RAIL TYPE

Applications

    • Wind Power Turbine
    • Street Light
    • Factory/Home circuit Protection

BHP80

Specification

    • Standards: IEC61643, IEC61312-1, 61643-1, 61000-5-6 VED0675,UL14492-2,UL1283,CSA22.2
    • 1P 1P+1 1P+N 3P 3P+1 3P+N
    • Uc(V)(AC): 385V
    • In(kA))(8/20μs): 40
    • Imax(kA)(8/20μs) Class II: 80
    • DIN RAIL TYPE

Applications

    • Wind Power Turbine
    • Street Light
    • Factory/Home circuit Protection

BHP100

Specification

    • Standards: IEC61643, IEC61312-1, 61643-1, 61000-5-6 VED0675,UL14492-2,UL1283,CSA22.2
    • 1P 1P+1 1P+N 3P 3P+1 3P+N
    • Uc(V)(AC): 385V
    • In(kA))(8/20μs): 60
    • Imax(kA)(8/20μs) Class II: 100
    • DIN RAIL TYPE
    • Fixed Type

Applications

    • Wind Power Turbine
    • Street Light
    • Factory/Home circuit Protection

TAD-99

Specification

    • Accessory: CD-01-06
    • Count 99 times
    • 2 DIG LED
    • Din Rail Installation
    • Draw out for replacement
    • 91*68*18mm

Applications

    • Use With Surge Protective Device
BHP

PC Class

Feature

    • Reliable mechanical interlock: Unique structure, ensuring only one set of power source can be input at a time.
    • Superior arc suppression performance: Eliminated all kinds of abnormal arc and shorten the duration, reduce contact consumption.
    • Multi-piece main arc contact: Increase surface contact area and contact pressure, avoiding overheating or contact melting, increase contact lifespan.
    • Simple structure with small volume: Reliable to use, low failure rate, easy installation, use and maintenance
    • Fast switching time: Prompt switching time between main power source and backup power source. Switching time can also be set by user.

Specification

    • Standard: IEC60947-6
    • Frame size (AF): 63, 125, 250, 500, 800, 1250, 2500, 5000
    • Poles: 2P / 3P / 4P
    • Rated Current (A): 16~5000
    • Rated Voltage (Ue): 2P: AC220 / 230 / 240V, 3/4P: AC380 / 400 / 415V
    • Controller: XST-5 / XST-6 / XST-6H

PC Class- Controller

Feature

    • XST-5 and XST-6 controllers are usable with the XSTN series three-section PC-class 2P/3P/4P dual power transfer switch
    • Frame size from 63AF to 5000AF
    • Functions of automatic transfer in case of occurrence of power faults such as under-voltage, over-voltage fault, under-frequency fault, over-frequency fault, unbalance phase voltage fault and inverse sequence fault.
    • Current measurement or communication function can be add-on for current measurement and remote communication purpose to ease up management.

Specification

    • Controller: XST-5 / XST-6 / XST-6H
    • Rated operation voltage (V): AC380 / AC400 / AC415
    • Rated operation frequency (Hz): 50 / 60
    • Operation voltage (V): AC165~300
    • Operation temperature (℃): -25~60

CB Class

Specification

    • Standard: IEC60947-2
    • The use of the maximum rated voltage Ui: 690V
    • Frame size (AF): 100,125,250,400,630,800,1000,1200,1600
    • Poles: 2P 3P 4P
    • Rated Current (A): 2P Up to 400A3P Up to 1600A4P Up to 800A

Applications

    • Factory application (Higher Frame Size & Rated Current)

CB Class-Controller

Specification

    • TDNE : Adjustable 1 ~ 30 sec (Time delay of transfer from normal to emergency)
    • TDEN : Adjustable 1 ~ 30 sec (Time delay of transfer from emergency to normal)
    • TDEC : Adjustable 1 ~ 3 Min (Time delay for engine cool-off)
    • TDES : built-in fixed 2 sec (Time delay on engine starting)

Applications

    • Factory application (Higher Frame Size & Rated Current)

Residential Type

Specification

    • Standard: IEC60947-2
    • Product Name: MS TYPE ATS
    • Products Jane Regulation: BS-MB Series
    • Optional voltage Ui: 110V/220V
    • Applied current (A): 20A
    • Pole: R,T / R,N
    • 3 groups attached to light, and manual operation device

Applications

    • Home application
DC Molded Case Circuit Breaker (MCCB)

BMA250-RTD DC

BMA DC type circuit breaker can be used in DC power system for circuit conducting, carrying, breaking and protecting. Protection includes overload and short circuit and also can be used as isolation purpose.■ The operating voltage of DC type breaker is DC500~1000V, Uimp=8kV, with breaking capacity of 40kA.■ Product can be used at places such as charging station, solar energy generation, new energy vehicles, energy storage equipment and other various DC applications.■ Equipped with thermal magnetic tripping unit, protecting electrical safety.■ BMA DC type circuit breaker is comply with IEC 60947-2 standard.■ Certification: CE, TUV
DC Miniature Curcuit Breaker (MCB)

BHA DC5

Applied to DC power supply, solar energy, energy storage, etc.Used to protect and control electrical equipment and circuits from overload and short-circuit.
DC Surge Protective Device (SPD)

BHP40PV5

￭ Function :It is mainly applied to the battery components of the solar power generation system, the DC circuit of the inverter and surge protectionfor solar power system equipment with a DC1000V￭ Feature :a. Modularization, mistake proofing design, easy to access plug-in module → no need to power-off during replacement in case of failureb. Status indicator window for failure display, also come with fault alarm auxiliary contact (1C)c. Certification: CE, TUV

DC Disconnect Switch

SWD50

SWD DC isolation switch, applicable for solar energy, wind power generation, energy storage equipment DC system.

DC Fuse

FUD-A

￭ Application :This series of fuse is used in circuit with rated voltage of DC1000V and rated current below 32A system. Can connect in series with solar panels and batteries, achieving short circuit breaking function with rated breaking capacity of 20kA. Comply with standard IEC60269-1 / IEC60269-6.￭ Feature :a. Failure indicationb. CE Declaration, TUV certificated

PM40

PM40

FEATURE

    1. LCD display selectable.
    2. Powerful data process capability, various data monitoring.
    3. PM40 modularized accessory provides flexible and expendable choice.
    4. PM40 can select LoRa wireless communication, no connection wire needed.
    5. PM40 modularized Accessories separate each functions.
DC Miniature Curcuit Breaker (MCB)

BHA DC5

Applied to DC power supply, solar energy, energy storage, etc.Used to protect and control electrical equipment and circuits from overload and short-circuit.
DC Surge Protective Device (SPD)

BHP40PV5

￭ Function :It is mainly applied to the battery components of the solar power generation system, the DC circuit of the inverter and surge protectionfor solar power system equipment with a DC1000V￭ Feature :a. Modularization, mistake proofing design, easy to access plug-in module → no need to power-off during replacement in case of failureb. Status indicator window for failure display, also come with fault alarm auxiliary contact (1C)c. Certification: CE, TUV

DC Disconnect Switch

SWD50

SWD DC isolation switch, applicable for solar energy, wind power generation, energy storage equipment DC system.

DC Fuse

FUD-A

￭ Application :This series of fuse is used in circuit with rated voltage of DC1000V and rated current below 32A system. Can connect in series with solar panels and batteries, achieving short circuit breaking function with rated breaking capacity of 20kA. Comply with standard IEC60269-1 / IEC60269-6.￭ Feature :a. Failure indicationb. CE Declaration, TUV certificated
