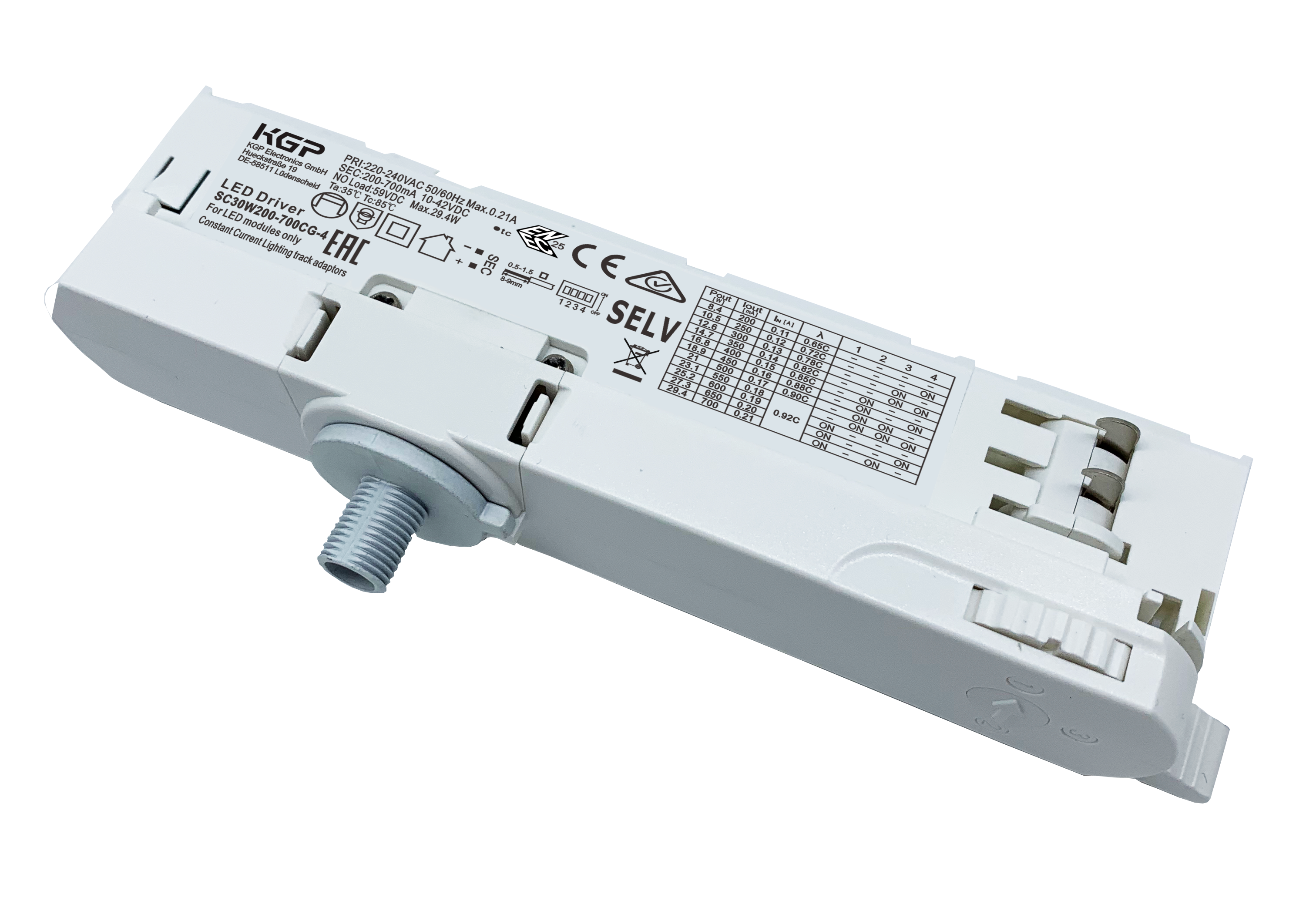

30W | 200-700mA

SC30W200-700CG-4

TECHNICAL SPECIFICATIONS

  • Input Voltage 220 – 240V
  • Frequency 50 – 60 Hz
  • Power Factor ≥0.95
  • Current Ripple < 3%

PRODUCT DESCRIPTION

Constant Current LED Driver Output Current adjustable via DIP-SWITCH 200 – 700mA in 50mA steps up to 88% Efficiency Lifetime 50.000h 5 years warranty

HOUSING CHARACTERISTICS

  • IP grade IP20
  • Insulation Class I, II
  • Concealed Adaptor with Integrated
  • LED Driver
  • 158 x 31 x 45mm

FUNCTIONS

  • Overload Protection
  • Short Circuit Protection
  • Open Circuit Protection
  • Overheat Protection

DATA SHEET

DOWNLOAD

CE DECLARATION

DOWNLOAD

CERTIFICATES

2D | 3D FILES

DOWNLOAD

PRODUCT PHOTO

DOWNLOAD
Model Output Current(230V Full Load) Input Power Output Powerload range PF(Full Load) Efficiency Output Voltage
SC30W200-700CG-4 200mA 10.5W 2.00-8.40W 0.65 80% 10-42V
250mA 12.8W 2.50-10.50W 0.72 82% 10-42V
300mA 15.3W 3.00-12.60W 0.78 82% 10-42V
350mA 17.7W 3.50-14.70W 0.82 83% 10-42V
400mA 25.3W 4.00-16.80W 0.85 84% 10-42V
450mA 22.5W 4.50-18.90W 0.88 84% 10-42V
500mA 25.0W 5.00-21.00W 0.9 84% 10-42V
550mA 27.5W 5.50-23.10W 0.92 84% 10-42V
600mA 29.6W 6.00-25.20W 0.92 85% 10-42V
650mA 32.1W 6.50-27.30W 0.92 85% 10-42V
700mA 34.4W 7.00-29.40W 0.92 84% 10-42V

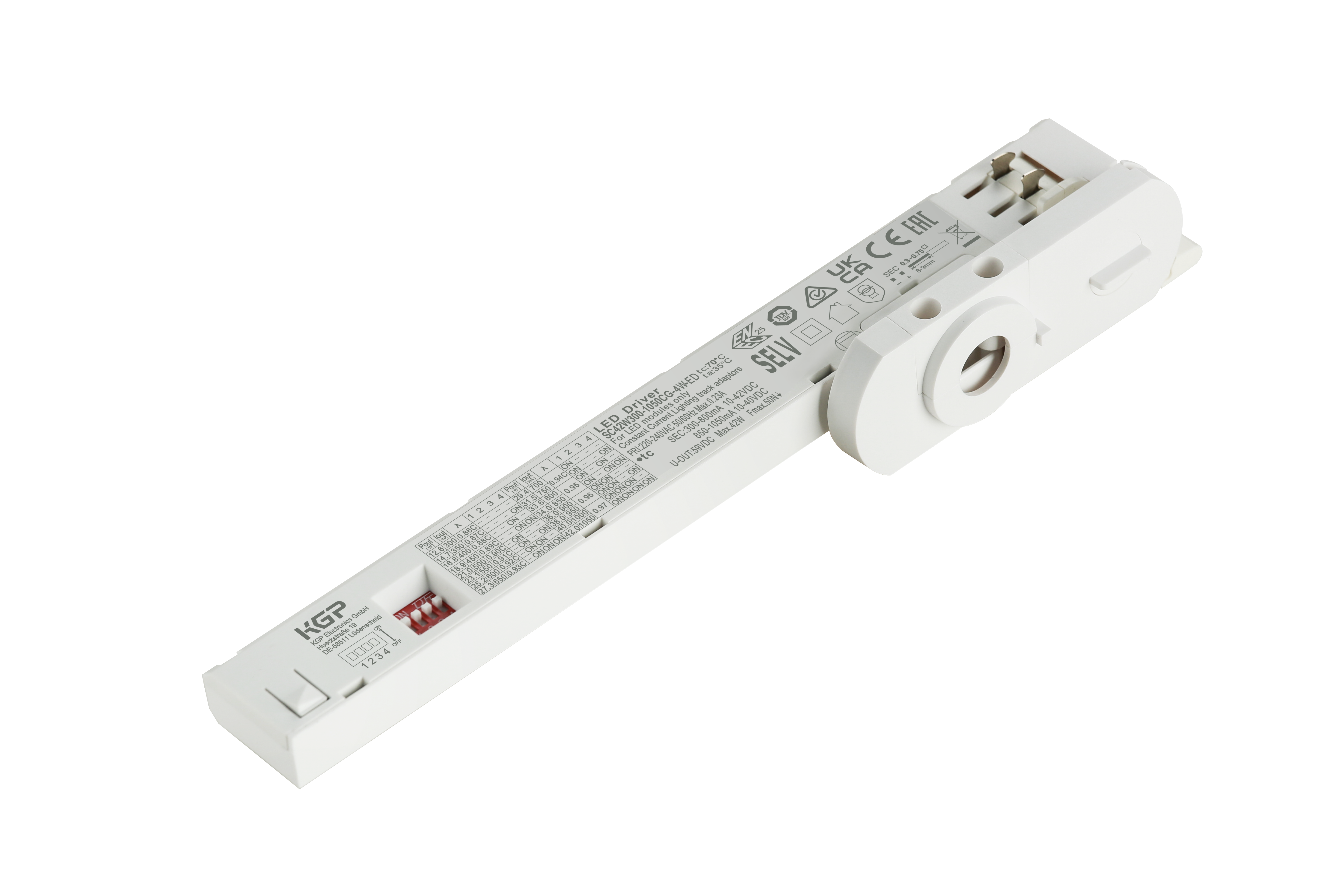

42W | 300-1050mA

SC42W300-1050CG-4X ED

TECHNICAL SPECIFICATIONS

  • Input Voltage 220 – 240V
  • Frequency 50 – 60 Hz
  • Power Factor >0.97
  • Current Ripple +/- 5%

PRODUCT DESCRIPTION

Constant Current LED Driver Output Current adjustable via DIP-SWITCH 300 – 1050mA in 50mA steps up to 89% Efficiency Lifetime 50.000h 5 years warranty

HOUSING CHARACTERISTICS

  • IP grade IP20
  • Insulation Class II
  • Concealed Adaptor with Integrated
  • LED Driver
  • 212 x 36 x 32mm

FUNCTIONS

  • Overload Protection
  • Short Circuit Protection
  • Open Circuit Protection
  • Overheat Protection
  • SELV

DATA SHEET

DOWNLOAD

CE DECLARATION

DOWNLOAD

CERTIFICATES

2D | 3D FILES

DOWNLOAD

PRODUCT PHOTO

DOWNLOAD
Model OutputCurrent InputCurrent Input Power Output PowerRange PF Efficiency OutputVoltage
SC42W300-1050CG-4W-ED 300mA 0.08A 14.48W 3.00-12.60W 0.86 87% 10-42V
350mA 0.09A 16.70W 3.50-14.70W 0.87 88% 10-42V
400mA 0.11A 19.10W 4.00-16.80W 0.88 88% 10-42V
450mA 0.12A 21.48W 4.50-18.90W 0.89 88% 10-42V
500mA 0.13A 23.60W 5.00-21.00W 0.90 89% 10-42V
550mA 0.14A 25.96W 5.50-23.10W 0.91 89% 10-42V
600mA 0.15A 30.40W 6.00-25.20W 0.92 89% 10-42V
650mA 0.16A 30.67W 6.50-27.30W 0.93 89% 10-42V
700mA 0.17A 33.03W 7.00-29.40W 0.94 89% 10-42V
750mA 0.18A 35.40W 7.50-31.50W 0.94 89% 10-42V
800mA 0.20A 37.75W 8.00-33.60W 0.95 89% 10-42V
850mA 0.21A 38.20W 8.50-34.00W 0.95 89% 10-40V
900mA 0.22A 40.45W 9.00-36.00W 0.96 89% 10-40V
950mA 0.22A 42.70W 9.50-38.00W 0.96 89% 10-40V
1000mA 0.23A 44.95W 10.00-40.00W 0.97 89% 10-40V
1050mA 0.23A 47.20W 10.50-42.00W 0.97 89% 10-40V
